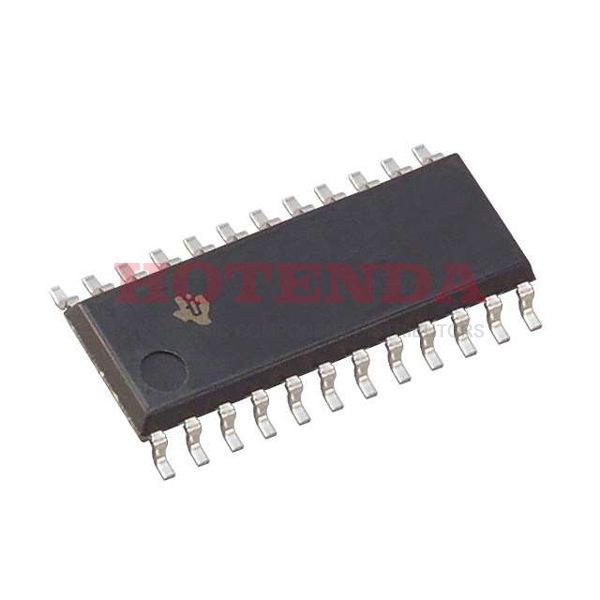

CD4034BNSRG4 Overview
There is a 24-SOIC (0.209, 5.30mm Width) package embedded with the device. 24 is the number of terminations on the chip. This item is packed in case Tape & Reel (TR). This part has an operating supply voltage of 5V. 1 elements are present in this part. In this device, there are 24 pins. Surface Mount is recommended for mounting. Its mounting method is Surface Mount. The operating temperature ranges -55°C~125°C. Votage is supplied within 3V~18V. 4000B is the series number of this electrical component. With CD4034 family search, you can find similar parts. In terms of supply voltage, this chip operates within the range of 15V. There are also the following additional considerations in this section: COMMON I/O PINS, SERIAL INPUT-PARALLEL OUTPUT AND SERIAL INPUT-SERIAL OUTPUT OPERATION AVAILABLE. For this part, the minimum supply voltage (Vsup) should not be less than 3V. 9 input lines are available on the device.
CD4034BNSRG4 Features
With 24 pins
Mounted in Surface Mount type.
Based on CD4034 family
Operate supply voltage at 15V
CD4034BNSRG4 Applications
There are a lot of Texas Instruments CD4034BNSRG4 Shift Registers applications.
- Generate time delay toward digital circuits
- Serial-to-parallel data conversion
- ROM Chips
- Flash Memory
- Pattern Recognizers
- Cache memory in CPU
- Serial-to-parallel data conversion
- 7-segment display control
- Data Processors
- Delay Line
