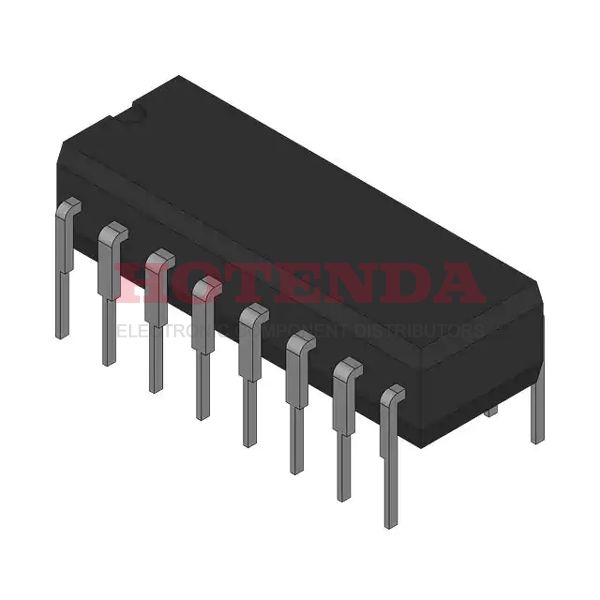

CD4009UBE Overview
The part can be shipped overseas conveniently because it is packaged in 16-DIP (0.300, 7.62mm). In order to provide high reliability, an advanced packaging method Tube is used. As a result, it works on the principle of Inverter. The part must have a voltage of 3V~18V in order to function properly. Operating temperature around -55°C~125°C extended. Through Hole is the mounting position of the part. In the low and high states of output current, the current is 1.5mA 24mA. This is part of the 4000B series. In total, there are 16 terminations. 6 functions in the part enhance the user experience significantly. The chip is part of the 4000/14000/40000 family. Use CD4009 to search for device variants. There are 16 pins injected into the part body. Many applications use this logic device with Through Hole mounting. The functions of 16 pins can be found in the datasheets. When the part is quiescent, 4μA current flows through it. It has a load capacitance of 50pF. Devices require a minimum voltage of 3V. The datasheet specifies that the part requires 5/15V volts of power. The operation uses 6 elements in total. Don't miss this part's additional features, such as: DUAL SUPPLY HIGH TO LOW VOLTAGE TRANSLATOR. The device is capable of conducting in a 8-bit mode.
CD4009UBE Features
Inverter Logic Type
Operating Temperature: -55°C~125°C
4000/14000/40000 Family
Quiescent Current: 4μA
Additional Feature: DUAL SUPPLY HIGH TO LOW VOLTAGE TRANSLATOR
