Name: 74LVC2G157DCURE4
Brand: Texas Instruments
SKU: 74LVC2G157DCURE4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-VFSOP (0.091, 2.30mm Width)
Number of Pins	8
Weight	9.610488mg
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	74LVC
JESD-609 Code	e4
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Type	Multiplexer
Packing Method	TAPE AND REEL
Technology	CMOS
Voltage - Supply	1.65V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	1.8V
Terminal Pitch	0.5mm
Base Part Number	74LVC2G157
Pin Count	8
Number of Outputs	1
Circuit	1 x 2:1
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3.3V
Load Capacitance	50pF
Propagation Delay	4 ns
Family	LV/LV-A/LVX/H
Logic Function	Multiplexer, Mux
Number of Inputs	2
Output Characteristics	3-STATE
Current - Output High, Low	32mA 32mA
Supply Type	Single
Output Polarity	COMPLEMENTARY
Prop. [email protected]	6 ns
Voltage Supply Source	Single Supply
Independent Circuits	1
Height Seated (Max)	0.9mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

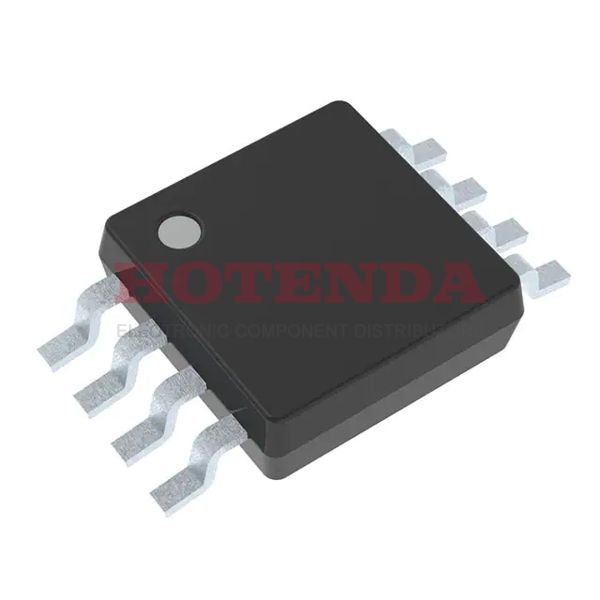

74LVC2G157DCURE4 Product Details

74LVC2G157DCURE4 Overview

This is a relatively small item of digital switch that is included in the 8-VFSOP (0.091, 2.30mm Width) in order to save space on the board.The package is packaged in the manner of Tape & Reel (TR).In terms of mounting, digital switch ic uses the Surface Mount method .Multiplexer is the analog IC that the multiplexers uses.As long as the operating temperature is -40°C~85°C, turn signal switch will not be influenced by external factors.The turn signal switch is designed for use with a 1.65V~5.5V supply voltage, which gives it a lot of flexibility.These multiplexers are members of the 74LVC series, which provide extensive application potential.Among its basic configurations are 8 terminations.There is a base part number of 74LVC2G157 which can also be used in order to locate the logic switch that are related to this item.In multiplexer's system, 1.8V is the voltage supplied.This turn signal switch consists of 8 component pins.GULL WING is used as the point at which the conductors come to an end as part of this formula.There is a type of supply of Single.Currently, it is configured with 8 pins.The multiplexer ic is mounted in the direction of Surface Mount.I would like to refer to the logic switch as a member of the LV/LV-A/LVX/H family.In order to avoid some unnecessary failures, you should maintain a maximum supply voltage (Vsup) of 5.5V.In order for 3.3V to operate normally, a power supply is provided.The turn signal switch operates with 1 outputs.This multiplexer has 2 inputs.A TAPE AND REEL packaging method is used in the switches.
