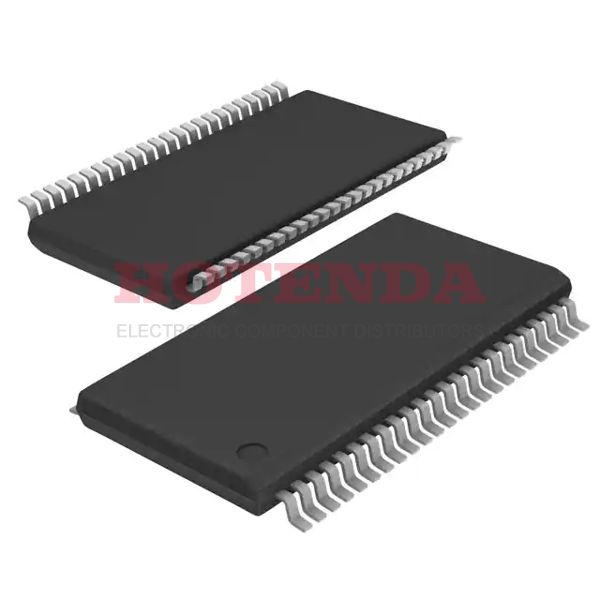

Name: 74CBTD16210DGVRE4
Brand: Texas Instruments
SKU: 74CBTD16210DGVRE4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.173, 4.40mm Width)
Number of Pins	48
Weight	123.490523mg
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	74CBTD
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	48
Type	Bus Switch
Resistance	7Ohm
Subcategory	Bus Driver/Transceivers
Packing Method	TR
Technology	CMOS
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	2
Supply Voltage	5V
Terminal Pitch	0.4mm
Base Part Number	74CBTD16210
Pin Count	48
Operating Supply Voltage	5V
Circuit	10 x 1:1
Power Supplies	5V
Load Capacitance	50pF
Number of Ports	2
Nominal Supply Current	1.5mA
Output Current	64mA
Number of Bits	20
Propagation Delay	250 ps
Quiescent Current	1.5mA
Turn On Delay Time	9.8 ns
Family	CBT/FST/QS/5C/B
Output Characteristics	3-STATE
Supply Type	Single
Bandwidth	20MHz
Nominal Input Voltage	2V
Output Polarity	TRUE
High Level Output Current	-128mA
Low Level Output Current	128mA
Voltage Supply Source	Single Supply
Independent Circuits	2
Count Direction	BIDIRECTIONAL
Translation	N/A
Height	1.2mm
Length	9.7mm
Width	4.4mm
Thickness	1.05mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

74CBTD16210DGVRE4 Product Details

74CBTD16210DGVRE4 Overview

Providing this information in the 48-TFSOP (0.173, 4.40mm Width) enables digital switch board space to be saved.It is packaged according to the Tape & Reel (TR) method.For mounting, digital switch ic uses the method Surface Mount.the multiplexers uses IC Bus Switch as the analog IC.When the operating temperature is kept at -40°C~85°C, the machine will not be sensturn signal switchive to external influences.When digital controlled switch operates at 4.5V~5.5V, designers have superior flexibility.Multiplexers of the 74CBTD series can be used in a wide range of applications.As part of its basic configuration, 48 terminations are designed as a part of it.The part number for 74CBTD16210 can be used to find its logic switch related parts as well.The turn signal switch is supplied with a voltage of 5V volts.In this turn signal switch, there are 48 components that can be connected to each pin.As a result, conductors end at GULL WING.There is a type of supply of Single.There are 48 pins on it.Multiplexer ics are mounted in the direction of Surface Mount.The logic switch belongs to the family of CBT/FST/QS/5C/B.In the signal multiplexer, there are 20 bits available.For mux switch's normal operation, there is a power supply provided at 5V.The digital switch ic is a part of an electronic system classified as Bus Driver/Transceivers.It consumes 1.5mA current of multiplexer ic since it is not affected by external factors.Supply voltages of 5V can provide reliable performance of the multiplexers.Currently, the switches is packaged in accordance with the TR method.The signal switching operates with a resistance of 2.With a resistance of 7Ohm, it operates.64mA provides a high degree of switches' flexibility.
