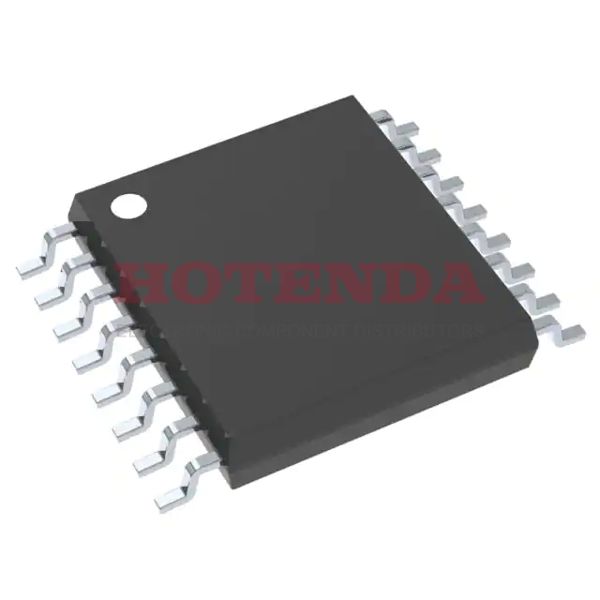

74ACT11008PWR Overview
Packed in 16-TSSOP (0.173, 4.40mm Width), the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the AND Gate logic principle. To ensure the part's full function, a voltage of 4.5V~5.5V is needed. Extended operating temperature around -40°C~85°C. The part is mounted in Surface Mount. The high and low state of output current is 24mA 24mA. It comes from the 74ACT series. There are 16 terminations totally. The part has 4 functions that significantly boost the user experience. It represents the ACT product family. If you are looking for device variants, try search with 74ACT11008. 16 pins are injected into the part body. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 16 pins functions. The part supports 2 inputs. In the quiescent state, the part has 4μA current flowing through it. The part bears a load capacitance of 50pF. As specified in datasheets, the part requires 5V power supplies. The device's output current is rated 24mA. 1 outputs are included in the device. The part can function from 5V. Logical operation through 4 gates.
74ACT11008PWR Features
AND Gate Logic Type
Operating Temperature: -40°C~85°C
ACT Family
Quiescent Current: 4μA
Output Current: 24mA
4 Gates
74ACT11008PWR Applications
There are a lot of Texas Instruments
74ACT11008PWR Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
