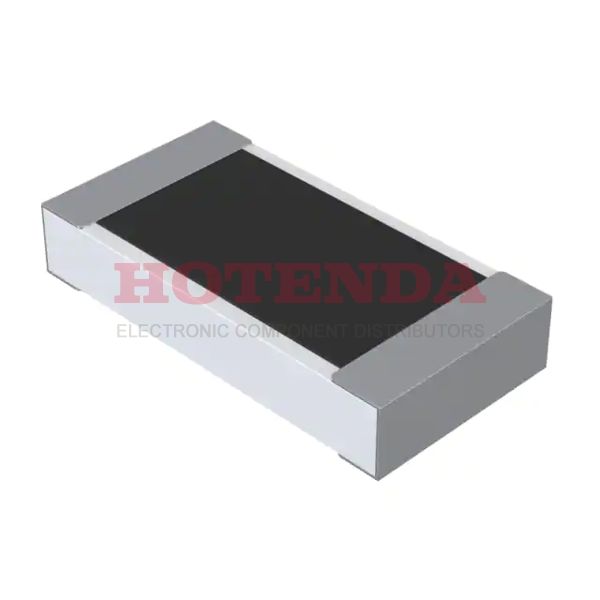

RLP73M2BR022JTD

new-10%

Manufacturer part number:RLP73M2BR022JTD

Manufacturer:TE Connectivity Passive Product

Description:RL73, CGS Series, Thick Film, 22mOhm, 0.5W 1/2W, ±5%, -55°C~155°C

Case Package:SOT-23

Datasheet:RLP73M2BR022JTD Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	21 Weeks
Mount	Surface Mount
Package / Case	1206 (3216 Metric)
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	RL73, CGS
Published	2012
Size / Dimension	0.122Lx0.061W 3.10mmx1.55mm
Tolerance	±5%
Feature	Current Sense
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Solder
Temperature Coefficient	±400ppm/°C
Resistance	22mOhm
Composition	Thick Film
Power (Watts)	0.5W 1/2W
Power Rating	500mW
Max Power Dissipation	500mW
Case Code (Metric)	3216
Case Code (Imperial)	1206
ELV	Compliant
Number of Resistors	1
Height	660.4μm
Height Seated (Max)	0.026 0.65mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
