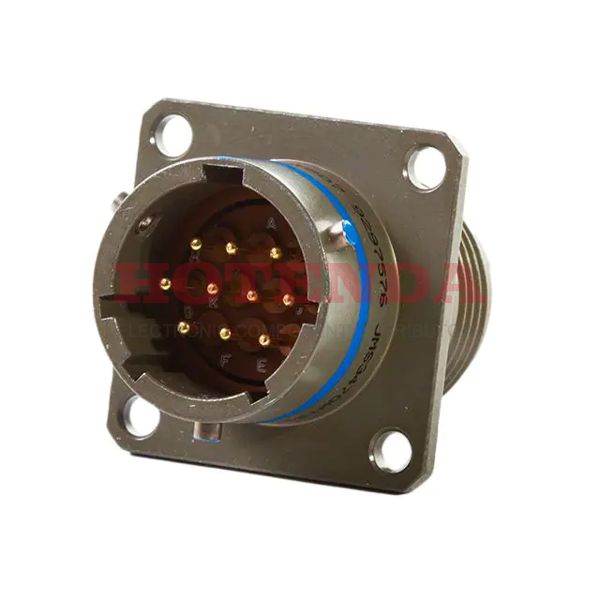

Name: MS3475W14-18PZ
Brand: TE Connectivity Deutsch Connectors
SKU: MS3475W14-18PZ
Price: 49.70000 USD
Availability: InStock

new

MS3475W14-18PZ

Manufacturer part number:MS3475W14-18PZ

Manufacturer:TE Connectivity Deutsch Connectors

Description:Plug, Male Pins Aluminum Free Hanging (In-Line) 18 Positions Crimp Gold Olive Drab Cadmium Bulk Z Bayonet Lock

Case Package:SOT-23

Datasheet:MS3475W14-18PZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Shell Material	Aluminum
Insert Material	Plastic
Body Material	Aluminium
Operating Temperature	-55°C~200°C
Packaging	Bulk
Series	Military, MIL-DTL-26482 G Series II, AFD
Published	2001
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
Connector Type	Plug, Male Pins
Number of Positions	18
Color	Olive Drab
Applications	Aviation, Automotive, Military
Voltage - Rated	600V
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	18
Orientation	Z
Shielding	Shielded
Ingress Protection	Environment Resistant
Current Rating	7.5A
Military Standard	MIL-DTL-26482
Shell Finish	Olive Drab Cadmium
Shell Size - Insert	14-18
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Male
Empty Shell	NO
Backshell Type	SOLID
Plating	Nickel
Body Plating	Cadmium
REACH SVHC	Yes
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Ratings	Environment Resistant, IP67

MS3475W14-18PZ Product Details

MS3475W14-18PZ Overview

The product is packaged in Plug, Male Pins.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Military, MIL-DTL-26482 G Series II, AFD Series.Part Cable, Free Hanging is mounted to the part.As a result, the device runs at -55°C~200°C Operating Temperature.
