Name: MS3470W12-10P
Brand: TE Connectivity Deutsch Connectors
SKU: MS3470W12-10P
Price: 27.93000 USD
Availability: InStock

new

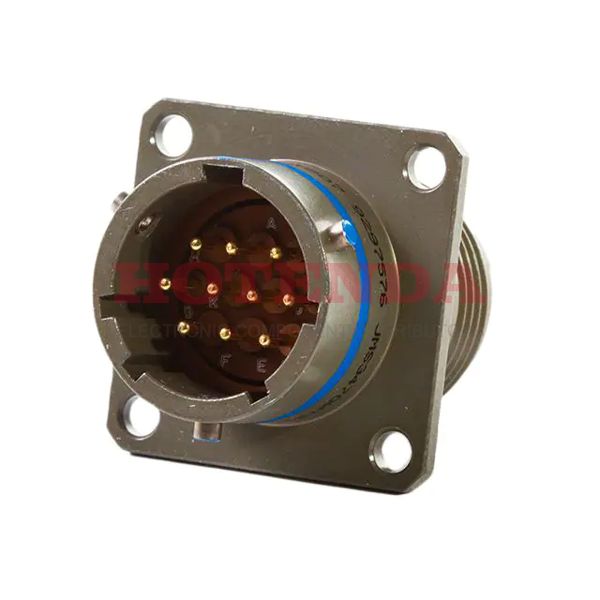

MS3470W12-10P

Manufacturer part number:MS3470W12-10P

Manufacturer:TE Connectivity Deutsch Connectors

Description:Receptacle, Male PinsAluminumPanel Mount10 PositionsCrimpGoldOlive Drab CadmiumBulkN (Normal)Bayonet Lock

Case Package:SOT-23

Datasheet:MS3470W12-10P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Contact Material	Copper Alloy
Mount	Flanges, Panel
Mounting Type	Panel Mount
Mounting Feature	Flange
Shell Material	Aluminum
Insert Material	Plastic
Body Material	Aluminium
Operating Temperature	-55°C~200°C
Packaging	Bulk
Published	2001
Series	Military, MIL-DTL-26482 G Series II, AFD
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
Connector Type	Receptacle, Male Pins
Number of Positions	10
Color	Olive Drab
Applications	Aviation, Automotive, Military
Gender	Receptacle
Voltage - Rated	600V
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	10
Orientation	N (Normal)
Ingress Protection	Environment Resistant
Current Rating	7.5A
Military Standard	MIL-DTL-26482
Shell Finish	Olive Drab Cadmium
Shell Size - Insert	12-10
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	Male
Empty Shell	NO
Backshell Type	SOLID
Body Plating	Cadmium
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	Non-RoHS Compliant
Ratings	Environment Resistant, IP67

MS3470W12-10P Product Details

MS3470W12-10P Overview

The product is packaged in Receptacle, Male Pins.Panel Mount is the mount type.To package the product, we use a Bulk case.Among the products in the Military, MIL-DTL-26482 G Series II, AFD Series, it is one of the most popular.There's a Flanges, Panel mount on the part.There is no operating temperature for the device.
