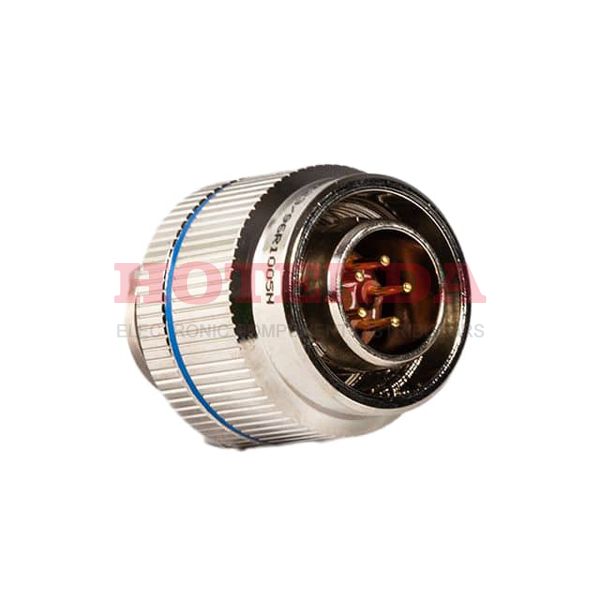

Name: M83723/76W1624N
Brand: TE Connectivity Deutsch Connectors
SKU: M83723/76W1624N
Price: 56.96000 USD
Availability: InStock

new

M83723/76W1624N

Manufacturer part number:M83723/76W1624N

Manufacturer:TE Connectivity Deutsch Connectors

Description:Plug, Male PinsAluminumFree Hanging (In-Line)24 PositionsCrimpGoldOlive Drab CadmiumBulkN (Normal)Bayonet Lock

Case Package:SOT-23

Datasheet:M83723/76W1624N Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Mounting Type	Free Hanging (In-Line)
Shell Material	Aluminum
Insert Material	Silicon Rubber
Body Material	Aluminium
Operating Temperature	-55°C~200°C
Packaging	Bulk
Published	2001
Series	Military, MIL-DTL-83723 Series III
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
Connector Type	Plug, Male Pins
Number of Positions	24
Color	Olive Drab
Applications	Aviation, Automotive, Military
Gender	Male
Additional Feature	STANDARD: MIL-DTL-83723
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	7.5A
Total Number of Contacts	24
Orientation	N (Normal)
Ingress Protection	Environment Resistant
Shell Finish	Olive Drab Cadmium
Shell Size - Insert	16-24
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Empty Shell	NO
Backshell Type	SOLID
Contact Finish Thickness - Mating	50.0μin 1.27μm
REACH SVHC	Unknown
RoHS Status	Non-RoHS Compliant

M83723/76W1624N Product Details

M83723/76W1624N Overview

The packaging contains Plug, Male Pins.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number Military, MIL-DTL-83723 Series III belongs to the Military, MIL-DTL-83723 Series III Series.Further, there are features such as STANDARD: MIL-DTL-83723, to name only a few.This device operates at a temperature of -55°C~200°C.
