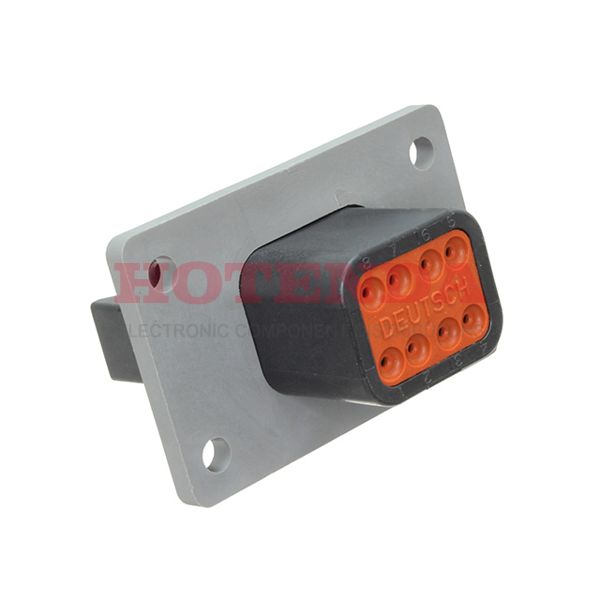

Name: DT04-08PB-L012
Brand: TE Connectivity Deutsch Connectors
SKU: DT04-08PB-L012
Price: 5.39000 USD
Availability: InStock

new-10%

DT04-08PB-L012

Manufacturer part number:DT04-08PB-L012

Manufacturer:TE Connectivity Deutsch Connectors

Description:2 Rows Receptacle Bulk Black 8 Positions Panel Mount Male Pin Crimp DT Thermoplastic

Case Package:SOT-23

Datasheet:DT04-08PB-L012 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	10 Weeks
Mounting Type	Panel Mount
Shell Material	GLASS FILLED POLYAMIDE
Housing Material	Thermoplastic
Packaging	Bulk
Series	DT
Feature	IP68, IP6K9K, Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Connector Type	Receptacle
Number of Positions	8
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Color	Black
Number of Rows	2
Additional Feature	POLARISED
Fastening Type	Latch Holder
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	4.445mm
Total Number of Contacts	8
Reference Standard	UL
Empty Shell	YES
Operating Supply Voltage	250V
Rated Current (Signal)	13A
Note	Contacts Not Included
ELV	Compliant
Contact Termination	Crimp
Hybrid Connector	No
Polarized	Yes
Height	45.67mm
Length	54.99mm
Width	35.5092mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

DT04-08PB-L012 Product Details

DT04-08PB-L012 Overview

The connector type Receptacle refers to the connector type.Mounting type Panel Mount is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the DT Series, it is one of the most popular.There are also other features, like POLARISED, to name a few.A number of benefits can be derived from the IP68, IP6K9K, Mounting Flange feature of this application.There is a note indicating that this memory operates at an 250V volt supply voltage.
