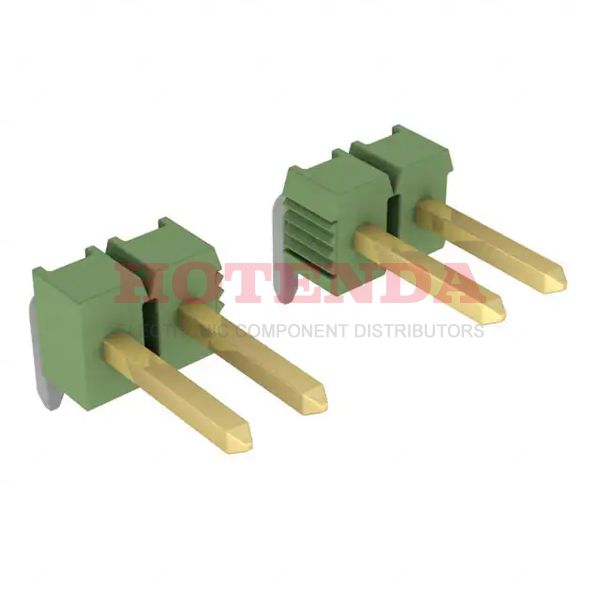

Name: 826652-6
Brand: TE Connectivity AMP Connectors
SKU: 826652-6
Price: 0.45000 USD
Availability: InStock

new-10%

826652-6

Manufacturer part number:826652-6

Manufacturer:TE Connectivity AMP Connectors

Description:826652-6 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:826652-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Contact Material	Brass
Contact Plating	Tin, Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Housing Material	PBT
PCB Mounting Orientation	Right Angle
Operating Temperature	-65°C~105°C
Packaging	Bulk
Published	2011
Series	AMPMODU Mod II
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	6
Number of Rows	1
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Insulation Height	0.120 3.05mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Green
Contact Length - Post	0.126 3.20mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.228 5.80mm
Contact Gender	Male
UL Flammability Code	94V-0
Lead Length	3.19786mm
Row Spacing	2.54 mm
ELV	Compliant
Contact Current Rating	5A
Mating Post Length	5.8mm
Keyed	No
Plating Thickness	800 nm
Contact Finish Thickness - Mating	3.90μin 0.099μm
Contact Finish Thickness - Post	118.1μin 3.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

826652-6 Product Details

826652-6 Overview

The packaging is Header, Breakaway.Through Hole, Right Angle is the mounting type.To package the product, a Bulk case is used.The product belongs to the AMPMODU Mod II Series.By Through Hole, the part is mounted.Operating temperature is -65°C~105°C.
