8-33470-2 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
8-33470-2 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 4 days ago)
Factory Lead Time
13 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
Solistrand
Published
2008
Feature
Brazed Seam, Serrated Termination
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Yellow
HTS Code
8536.90.40.00
Orientation
Straight
Depth
16.66mm
Contact Finish
Tin
Wire Gauge
4 AWG
ELV
Compliant
Wire/Cable Gauge
4 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Terminal Type
Circular
Wire Cross Section
26.7 mm2
Stud/Tab Size
5/16 Stud
Heavy Duty
No
Terminal Gender
FEMALE
Stud Diameter
8.3312 mm
Number of Holes
1
Stud Size
M8
Length
33.38mm
Thickness
0.070 1.78mm
Length - Overall
1.314 33.38mm
Diameter - Inside
7.52 mm
Width - Outer Edges
0.656 16.66mm
Material Thickness
1.778mm
Tongue Thickness
1.78mm
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:3459 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.750000
$1.75
10
$1.650943
$16.50943
100
$1.557494
$155.7494
500
$1.469334
$734.667
1000
$1.386164
$1386.164

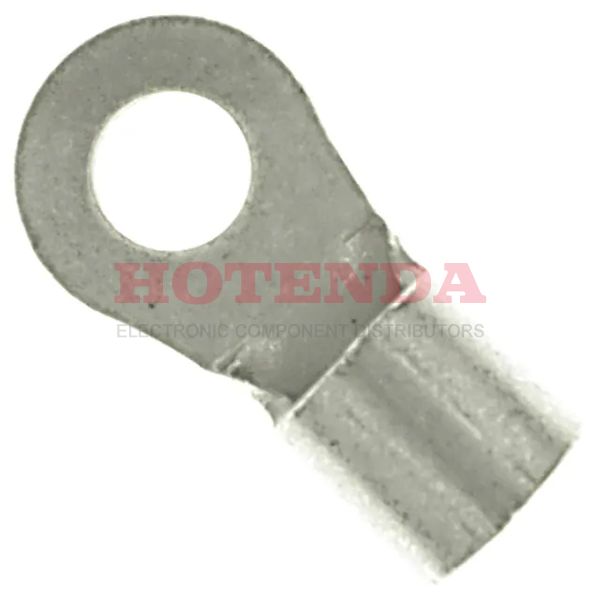

8-33470-2 Product Details
Description: The TE Connectivity / AMP Terminals 8-33470-2 Ring Connectors are designed for use in a variety of electrical applications. These connectors are made of a durable, corrosion-resistant material and feature a 4 AWG #5/16 crimp design. The connectors are designed to provide a secure connection and are suitable for use in a variety of environments.
Features: - 4 AWG #5/16 crimp design - Durable, corrosion-resistant material - Secure connection - Suitable for use in a variety of environments
Applications: The TE Connectivity / AMP Terminals 8-33470-2 Ring Connectors are suitable for use in a variety of electrical applications, including automotive, marine, and industrial applications. They can be used to connect wires, cables, and other components in a secure and reliable manner.
