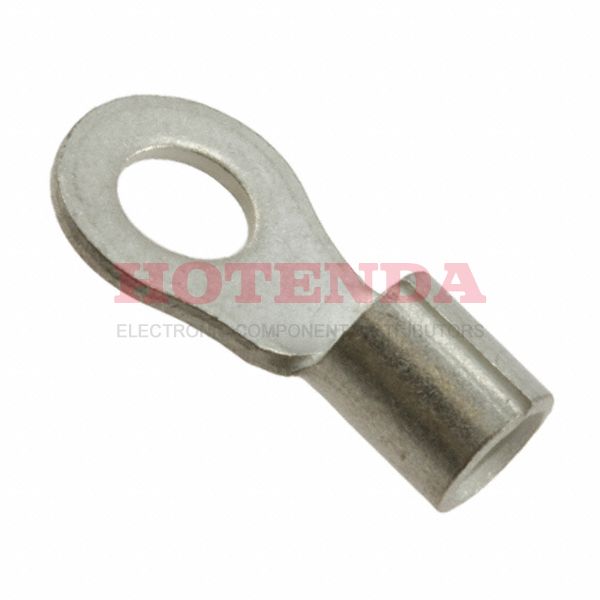

8-33457-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
8-33457-1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 1 week ago)
Factory Lead Time
12 Weeks
Contact Material
Copper
Mount
Stud
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
Solistrand
Published
2009
Feature
Brazed Seam, Serrated Termination
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Yellow
HTS Code
8536.90.40.00
Orientation
Straight
Depth
9.53mm
Contact Finish
Tin
Wire Gauge
10-12 AWG
ELV
Compliant
Wire Gauge (Max)
10 AWG
Wire Gauge (Min)
12 AWG
Terminal and Terminal Block Type
WIRE TERMINAL
Insulation
Non-Insulated
Terminal Type
Circular
Wire Cross Section
6.64 mm2
Stud/Tab Size
10 Stud
Heavy Duty
No
Terminal Gender
FEMALE
Stud Diameter
5 mm
Number of Holes
1
Length
19.43mm
Thickness
0.039 0.99mm
Length - Overall
0.765 19.43mm
Diameter - Inside
3.28 mm
Width - Outer Edges
0.375 9.53mm
Material Thickness
990.6μm
Tongue Thickness
990μm
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:16501 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.44000
$0.44
10
$0.40900
$4.09
25
$0.36800
$9.2
50
$0.32700
$16.35
100
$0.31340
$31.34
250
$0.28620
$71.55
500
$0.27256
$136.28
8-33457-1 Product Details
Description:
TE Connectivity / AMP Terminals 8-33457-1 Ring Connectors are designed for use in a variety of electrical applications. These connectors are made of high-quality materials and feature a 10-12 AWG #10 ring design. They are designed to provide reliable connections and are suitable for a wide range of applications.
Features:
• 10-12 AWG #10 ring design • High-quality materials • Reliable connections • Suitable for a wide range of applications • Easy to install
Applications:
TE Connectivity / AMP Terminals 8-33457-1 Ring Connectors are suitable for a variety of electrical applications, including automotive, industrial, and consumer electronics. They are ideal for use in applications where reliable connections are required, such as in wiring harnesses, power supplies, and other electrical systems.
