Name: 776280-2
Brand: TE Connectivity AMP Connectors
SKU: 776280-2
Price: 10.70000 USD
Availability: InStock

new

776280-2

Manufacturer part number:776280-2

Manufacturer:TE Connectivity AMP Connectors

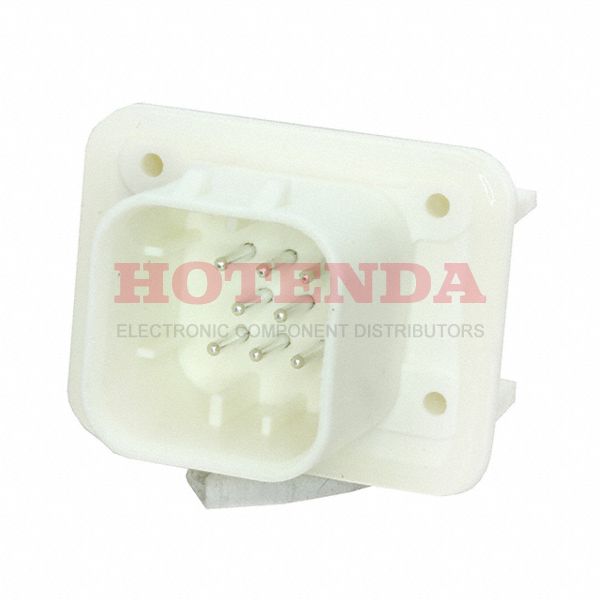

Description:776280-2 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:776280-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Contact Material	Brass
Mount	Through Hole
Mounting Type	Panel Mount, Through Hole, Right Angle
Contact Shape	Circular
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Housing Material	Polybutylene
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2014
Series	AMPSEAL
Feature	Board Guide, Sealed
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Applications	Automotive, Industrial
Number of Rows	3
Gender	Male
Voltage - Rated	250VAC
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	Varies by WireGAuge
Total Number of Contacts	8
Orientation	Right Angle
Shielding	Unshielded
Depth	37.9mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.157 4.00mm
Row Spacing - Mating	0.157 (4.00mm)
Shrouding	Shrouded - 4 Wall
Housing Color	Natural
Empty Shell	NO
Operating Supply Voltage	250V
Max Voltage Rating (AC)	250V
Circuit Application	Power
Number of Signal Positions	8
Length	40.8mm
Width	37.9mm
PCB Thickness	1.5748mm
Tab Thickness	1.3mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

776280-2 Product Details

776280-2 Overview

A Header packaging is included.The device's mounting type is Panel Mount, Through Hole, Right Angle.Packaging the product involves using a Bulk case.It's part of the AMPSEAL Series.This device may be used for the purpose of Automotive, Industrial.In many ways, it is more powerful due to its Board Guide, Sealed feature.There is a Through Hole mount on the part.A voltage of 250V is required to operate this memory.This device runs at -40°C~105°C operating temperature.
