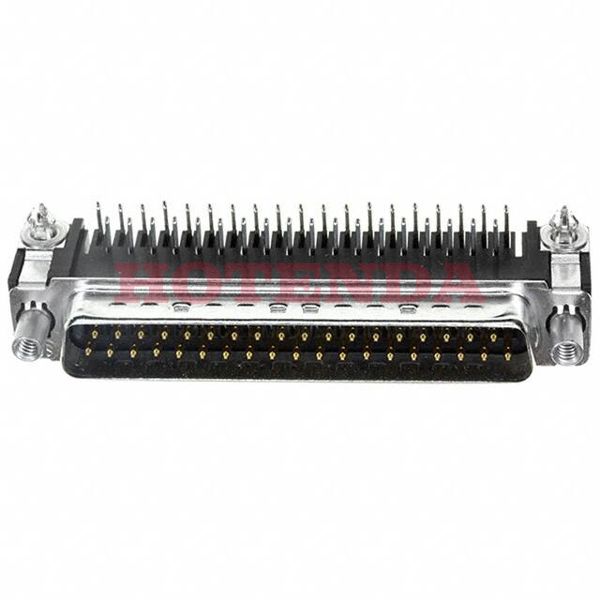

Name: 747843-6
Brand: TE Connectivity AMP Connectors
SKU: 747843-6
Price: 12.06000 USD
Availability: InStock

new

747843-6

Manufacturer part number:747843-6

Manufacturer:TE Connectivity AMP Connectors

Description:747843-6 datasheet pdf and D-Sub Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:747843-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Package / Case	Metal
Contact Shape	Round
Shell Material	Steel
Housing Material	Thermoplastic
Shell Material, Finish	Steel, Tin Plated
PCB Mounting Orientation	Right Angle
Operating Temperature	-55°C~105°C
Packaging	Tray
Published	2011
Series	AMPLIMITE HD-20
JESD-609 Code	e0
Feature	Board Lock, Grounding Indents
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Male Pins
Number of Positions	37
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	125V
HTS Code	8536.69.40.30
Subcategory	D Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	2.77mm
Total Number of Contacts	37
Orientation	Right Angle
Shielding	Shielded
Depth	18.8mm
Current Rating	6A
Shell Finish	TIN
Contact Finish	Gold
Reliability	COMMERCIAL
Approval Agency	UL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Body Breadth	0.494 inch
UL Flammability Code	94V-0
Lead Length	3.175mm
Empty Shell	NO
Row Spacing	2.8448 mm
Flange Feature	Mating Side, Female Screwlock (4-40)
ELV	Non-Compliant
Plating	Tin
Connector Style	D-Sub
Number of Ports	1
Sealable	No
Shell Size, Connector Layout	4 DC C
Hole Diameter	3.18 mm
Backset Spacing	0.318 (8.08mm)
Preloaded	Yes
Mating Connector Lock	With
Length	69.32mm
PCB Thickness	1.57mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

747843-6 Product Details

747843-6 Overview

This product is packaged in a Plug, Male Pins carton.The device's mounting type is Through Hole, Right Angle.We use a Tray case to package the product.The product is part of the AMPLIMITE HD-20 Series.The packaging with the Metal contains a device.A number of tasks can be managed using the 1 ports.In many ways, its Board Lock, Grounding Indents feature makes it more powerful.There is a Through Hole mount on the part.In this case, the device operates at -55°C~105°C Operating Temperature.
