696050-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
696050-1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 1 week ago)
Factory Lead Time
16 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Poly-Vinyl Chloride (PVC)
Packaging
Bulk
Series
Plasti-Grip
Published
2008
Feature
Serrated Termination
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Resistance
8Ohm
Color
Red
HTS Code
8536.90.40.00
Depth
10.4mm
Voltage - Rated AC
600V
Wire Gauge
8 AWG
ELV
Compliant
Wire/Cable Gauge
8 AWG
Sealable
No
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
9.14 mm
Insulation
Insulated
Terminal Type
Circular
Stud/Tab Size
10 Stud
Heavy Duty
Yes
Stud Diameter
5 mm
Number of Holes
1
Length
35.306mm
Thickness
0.048 1.22mm
Length - Overall
1.390 35.31mm
Width - Outer Edges
0.406 10.31mm
Material Thickness
1.22mm
Tongue Thickness
1.22mm
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:4648 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.440000
$1.44
10
$1.358491
$13.58491
100
$1.281595
$128.1595
500
$1.209052
$604.526
1000
$1.140615
$1140.615

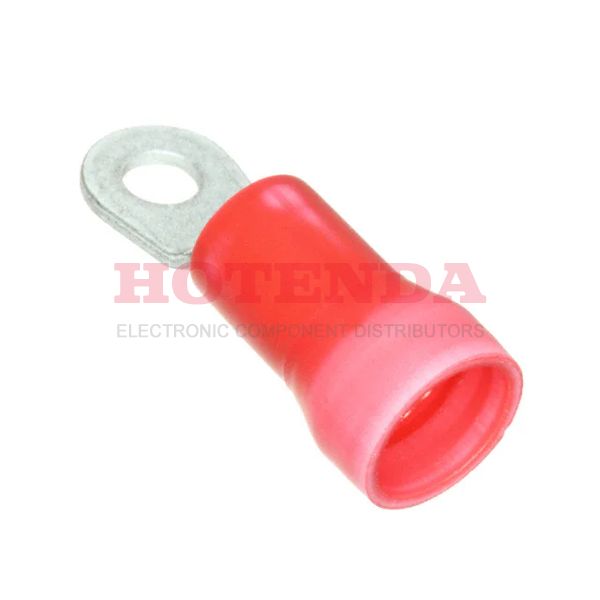

696050-1 Product Details
Description: The TE Connectivity / AMP Terminals 696050-1 Ring Connectors are a type of electrical terminal designed for use in a variety of applications. These ring tongue terminals are made from 8AWG wire and feature a 35.31mm length and 10.4mm width. They are made from tin and come in a loose piece form.
Features: • 8AWG wire construction • 35.31mm length • 10.4mm width • Tin material • Loose piece form
Applications: The TE Connectivity / AMP Terminals 696050-1 Ring Connectors are suitable for use in a variety of applications, including automotive, industrial, and consumer electronics. They are commonly used for making electrical connections between two or more components, such as wires, cables, and other terminals.
