Name: 6-1393644-6
Brand: TE Connectivity AMP Connectors
SKU: 6-1393644-6
Price: 6.52000 USD
Availability: InStock

new-10%

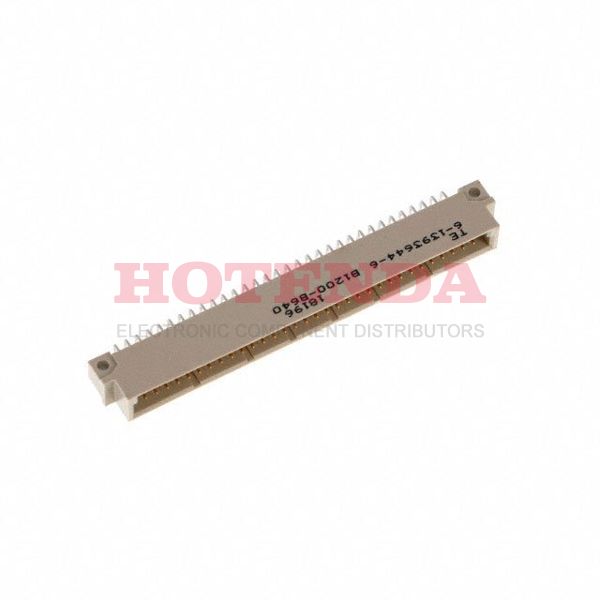

6-1393644-6

Manufacturer part number:6-1393644-6

Manufacturer:TE Connectivity AMP Connectors

Description:6-1393644-6 datasheet pdf and Backplane Connectors - DIN 41612 product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:6-1393644-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	20 Weeks
Contact Material	Brass
Contact Plating	Gold
Mounting Type	Through Hole, Right Angle
Mount	Through Hole
Housing Material	Polyester
Material - Insulation	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
PCB Mounting Orientation	Right Angle
Underplate Material	Nickel
Packaging	Bulk
Series	Eurocard
Published	2003
Operating Temperature	-55°C~125°C
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Male Pins
Number of Rows	2
Gender	Male
Voltage - Rated	250V
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	YES
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.100 2.54mm
Total Number of Contacts	64
Orientation	Right Angle
Shielding	Unshielded
Depth	12.7mm
Style	B
Number of Positions Loaded	All
Current Rating	2A
Reference Standard	UL
Contact Finish	Gold or Gold-Palladium
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	2.54mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.339 inch
UL Flammability Code	94V-0
Housing Color	Grey
Lead Length	3mm
Contact Resistance	20mOhm
Insulation Resistance	100MOhm
Row Spacing	2.54 mm
Max Voltage Rating (AC)	250V
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1000VAC V
Max Voltage Rating (DC)	250V
Withdrawl Force-Min	.139 N
Circuit Application	Signal
Insulator Color	GRAY
Number of Signal Positions	64
Mating Post Length	4.93mm
Number of Columns	32
Termination Post Length	3mm
Make First / Break Last	No
Name of Rows Loaded	A,B
Height	11.5062mm
Length	93.98mm
Width	8.0518mm
Plating Thickness	760 nm
Length - Tail	2.9972mm
PCB Thickness	1.5748mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Material Flammability Rating	UL94 V-0
Flammability Rating	UL94 V-0

6-1393644-6 Product Details

Description:
TE Connectivity / AMP DIN 41612 6-1393644-6 Backplane Connectors are 64-position, 2.54mm pitch, right angle, through-hole, tray mount connectors. They are designed for use in backplane applications and feature a robust design with a high-temperature thermoplastic housing and a tin-plated copper alloy contact.

Features:
• 64-position, 2.54mm pitch
• Right angle, through-hole, tray mount
• Robust design with high-temperature thermoplastic housing
• Tin-plated copper alloy contact
• Rated for up to 5A per contact
• Operating temperature range of -55°C to +105°C

Applications:
TE Connectivity / AMP DIN 41612 6-1393644-6 Backplane Connectors are ideal for use in backplane applications, such as in telecommunications, industrial automation, and medical equipment. They are also suitable for use in high-density applications where space is limited.
