Name: 5750071-1
Brand: TE Connectivity AMP Connectors
SKU: 5750071-1
Price: 5.53000 USD
Availability: InStock

new-10%

5750071-1

Manufacturer part number:5750071-1

Manufacturer:TE Connectivity AMP Connectors

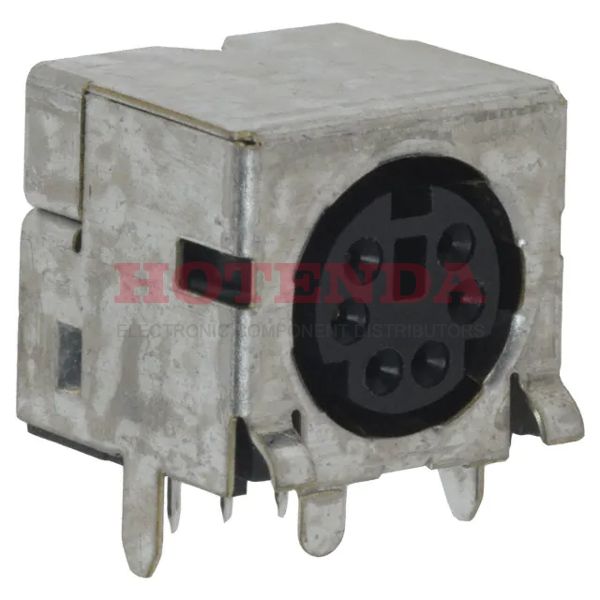

Description:Receptacle, Female Sockets Polyester Through Hole, Right Angle 6 Positions Solder Gold Tube Keyed Push-Pull

Case Package:SOT-23

Datasheet:5750071-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Shell Material	Polyester
Material	Metal
Body Material	Plastic
PCB Mounting Orientation	Right Angle
Underplate Material	Nickel
Operating Temperature	-55°C~105°C
Packaging	Tube
Published	2006
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Female Sockets
Number of Positions	6
Color	Black
Applications	Audio, Video
Gender	Receptacle
Voltage - Rated	30VDC
Fastening Type	Push-Pull
Subcategory	DIN Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	YES
IEC Conformance	NO
Option	GENERAL PURPOSE
Total Number of Contacts	6
Orientation	Keyed
Shielding	Shielded
Depth	12.83mm
Current Rating	1A
Reference Standard	UL
Shell Size - Insert	Mini DIN
Reliability	COMMERCIAL
Approval Agency	CSA
Contact Gender	Female
Operating Supply Voltage	30V
Contact Style	RND PIN-SKT
ELV	Compliant
Max Voltage Rating (AC)	30V
Max Current Rating	1A
Plating	Tin
Polarization Key	POLAR PIN POSITION
Dielectric Withstanding Voltage	500VAC V
Number of Ports	1
Durability	500 Cycles
Sealable	No
Circuit Application	Signal
Mating Alignment	With
EMI Shielded	NO
Height	12.83mm
Length	16.51mm
Width	14mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Length - Tail	3.18mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

5750071-1 Product Details

5750071-1 Overview

Packaging for this item is Receptacle, Female Sockets.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.Through Hole is used to mount the part.In this case, the device operates at -55°C~105°C Operating Temperature.

5750071-1 Features

5750071-1 Applications

There are a lot of TE Connectivity AMP Connectors
5750071-1 Circular Connectors applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications

Quantity	Unit Price	Ext. Price
1	$4.51000	$4.51
10	$4.35000	$43.5
37	$4.01486	$148.54982
74	$3.84743	$284.70982
111	$3.68018	$408.49998
259	$3.26197	$844.85023
518	$3.17832	$1646.36976

5750071-1

5750071-1

Technical Specifications

In-Stock:1147 items
