5747190-1

Manufacturer part number:5747190-1

Manufacturer:TE Connectivity AMP Connectors

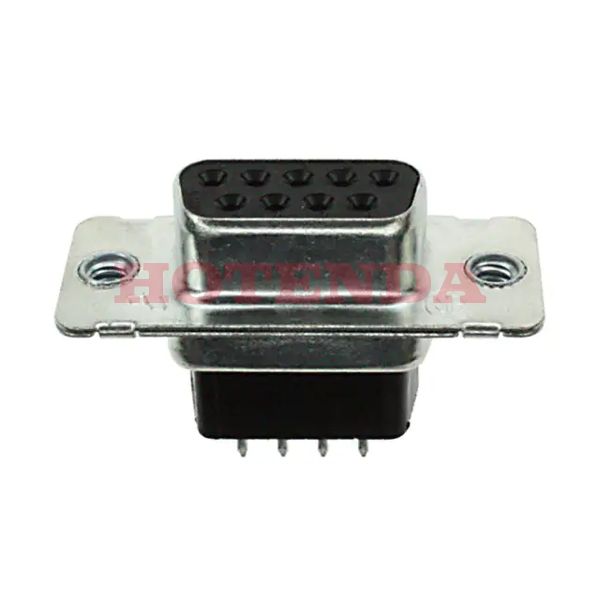

Description:AMPLIMITE HDP-20 Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal Solder 1 DE E Through Hole Phosphor Bronze Gold Steel, Tin Plated

Case Package:SOT-23

Datasheet:5747190-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Shell Material	Steel
Housing Material	Nylon
Body Material	Metal
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~105°C
Packaging	Tube
Published	1998
Series	AMPLIMITE HDP-20
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Color	Black
Number of Rows	2
Gender	Receptacle
Voltage - Rated	125V
Subcategory	D Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	2.7432mm
Total Number of Contacts	9
Orientation	Vertical
Depth	12.55mm
Current Rating	6A
Shell Finish	TIN
Reference Standard	UL, CSA
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Lead Length	3.175mm
Empty Shell	NO
Rated Current (Signal)	6A
Row Spacing	2.8448 mm
Flange Feature	Board Side (4-40)
ELV	Compliant
Max Voltage Rating (AC)	250V
Plating	Tin
Connector Style	D-Sub
Number of Ports	1
Max Voltage Rating (DC)	250.25kV
Sealable	No
Shell Size, Connector Layout	1 DE E
Hole Diameter	3.048 mm
Preloaded	Yes
Max Supply Voltage (DC)	250V
Max Supply Voltage (AC)	250V
Mating Connector Lock	With
Length	30.81mm
Contact Finish Thickness	Flash
PCB Thickness	2.36mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

5747190-1 Product Details

5747190-1 Overview

A Receptacle, Female Sockets package is included with it.This device has a mounting type of Through Hole.An orange Tube case is used to package the product.A member of the AMPLIMITE HDP-20 Series.For managing a variety of tasks, it has 1 ports.There is a Through Hole mount on the part.Operating temperature is -55°C~105°C.
