Name: 5414459-1
Brand: TE Connectivity AMP Connectors
SKU: 5414459-1
Price: 11.34000 USD
Availability: InStock

new

5414459-1

Manufacturer part number:5414459-1

Manufacturer:TE Connectivity AMP Connectors

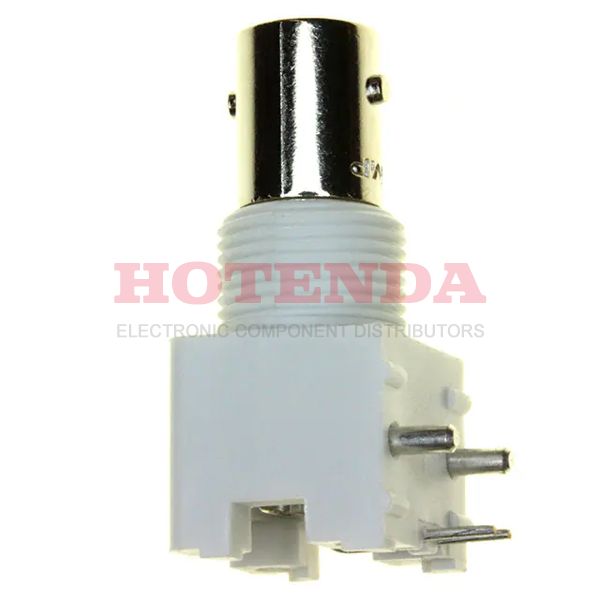

Description:Jack, Female Socket Bayonet Lock 75Ohm Bulk BNC Solder 1 Port Polymethylpentene (PMP) -55°C~85°C

Case Package:SOT-23

Datasheet:5414459-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	16 Weeks
Contact Material	Copper
Mount	Panel, Through Hole
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Insulation Material	Polymethylpentene
Dielectric Material	Polymethylpentene (PMP)
Body Material	Zinc
PCB Mounting Orientation	Right Angle
Center Contact Plating	Gold
Center Contact Material	Beryllium Copper
Operating Temperature	-55°C~85°C
Packaging	Bulk
Published	2007
Feature	Board Guide, Isolated
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Jack, Female Socket
Number of Positions	1
Color	Natural
Gender	Female
Voltage - Rated	500V
Fastening Type	Bayonet Lock
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Option	GENERAL PURPOSE
Total Number of Contacts	1
Orientation	Right Angle
Depth	14.76mm
Frequency	2GHz
Reliability	COMMERCIAL
Body Breadth	0.625 inch
Housing Color	Natural, Silver
Polarity	Standard
Contact Style	COAX
Insulation Resistance	5GOhm
ELV	Compliant
Impedance	75Ohm
Connector Style	BNC
Number of Ports	1
Sealable	No
Mating Cycles	500
Contact Termination	Solder
Body Finish	Nickel
Length	34.93mm
Length - Tail	4.11mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

5414459-1 Product Details

5414459-1 Overview

Jack, Female Socket packaging is included.A Panel Mount, Through Hole, Right Angle mounting type is specified for the device.A Bulk case is used for packaging.With 1 ports, you can do everything you need.A number of aspects of its Board Guide, Isolated feature make it more powerful.By Panel, Through Hole it's mounted.In this case, the device runs at -55°C~85°C Operating Temperature.A frequency of 2GHz will enable it to perform efficiently.
