Name: 5413590-4
Brand: TE Connectivity AMP Connectors
SKU: 5413590-4
Price: 14.65000 USD
Availability: InStock

new

5413590-4

Manufacturer part number:5413590-4

Manufacturer:TE Connectivity AMP Connectors

Description:Jack, Female Socket Bayonet Lock 75Ohm Bulk BNC Crimp 1 Port Polyethylene (PE) -55°C~85°C

Case Package:SOT-23

Datasheet:5413590-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Material	Copper
Mount	Panel
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut
Insulation Material	Polymethylpentene
Dielectric Material	Polyethylene (PE)
Body Material	Zinc
Center Contact Plating	Gold
Center Contact Material	Beryllium Copper
Operating Temperature	-55°C~85°C
Packaging	Bulk
Published	2007
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Jack, Female Socket
Number of Positions	1
Gender	Male
Voltage - Rated	500V
Fastening Type	Bayonet Lock
Total Number of Contacts	1
Orientation	Straight
Depth	20.32mm
Frequency	2GHz
Reliability	COMMERCIAL
Housing Color	Silver
Polarity	Standard
Contact Style	COAX
Insulation Resistance	5GOhm
ELV	Compliant
Impedance	75Ohm
Connector Style	BNC
Number of Ports	1
Sealable	Yes
Mating Cycles	500
Contact Termination	Crimp

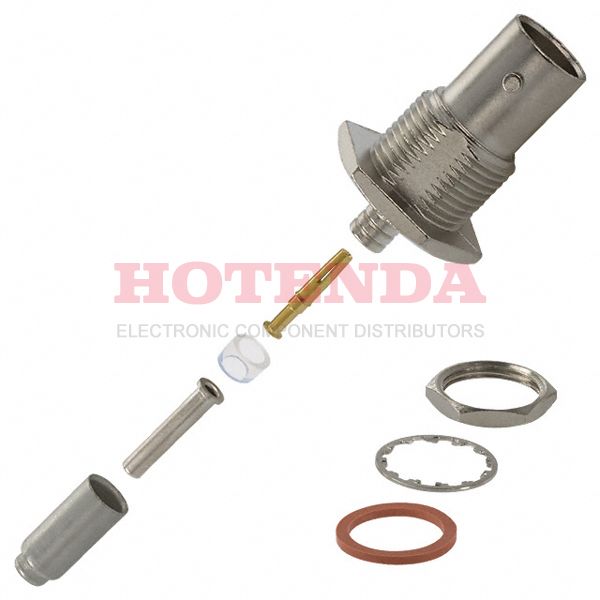

Includes	8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 2 Sleeves
Insertion Loss	0.15dB
Body Finish	Nickel
Cable Group	AT&T KS Cable
Length	34.93mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

5413590-4 Product Details

5413590-4 Overview

The product is packaged in Jack, Female Socket.Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.A variety of tasks can be managed via its 1 ports.In this case, Panel mounts the part.The device is operating at -55°C~85°C Operating Temperature.The efficiency of this device can be improved when operating at a frequency of 2GHz.
