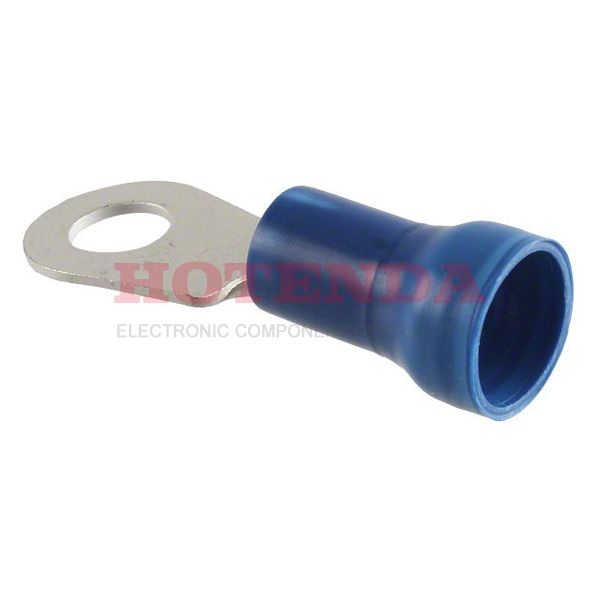

52264-4 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
52264-4 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 3 days ago)
Factory Lead Time
15 Weeks
Contact Material
Copper
Contact Plating
Tin
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Poly-Vinyl Chloride (PVC)
Packaging
Tape & Reel (TR)
Series
Plasti-Grip
Published
2005
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Blue
HTS Code
8536.90.40.00
Orientation
Straight
Depth
15.88mm
Voltage - Rated AC
600V
Wire Gauge
6 AWG
ELV
Compliant
Wire/Cable Gauge
6 AWG
Sealable
No
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.450 (11.43mm)
Insulation
Insulated
Terminal Type
Circular
Stud/Tab Size
5/16 Stud
Insulated Wire Support
Yes
Terminal Gender
FEMALE
Stud Diameter
8.3312 mm
Number of Holes
1
Stud Size
M8
Length
48.4124mm
Thickness
0.045 1.14mm
Length - Overall
1.906 48.41mm
Width - Outer Edges
0.625 15.88mm
Tongue Thickness
1.14mm
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:2476 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$3.058000
$3.058
10
$2.884906
$28.84906
100
$2.721609
$272.1609
500
$2.567556
$1283.778
1000
$2.422222
$2422.222
52264-4 Product Details
Description: TE Connectivity / AMP Terminals 52264-4 Ring Connectors are designed for use in a variety of electrical applications. These connectors feature a 6 AWG #5/16 crimp design and are made of high-quality materials for reliable performance.
Features:
- 6 AWG #5/16 crimp design - Made of high-quality materials for reliable performance - Suitable for a variety of electrical applications - Easy to install and use
Applications:
TE Connectivity / AMP Terminals 52264-4 Ring Connectors are suitable for a variety of electrical applications, including automotive, marine, and industrial applications. They are also suitable for use in power distribution, lighting, and control systems.
Related Products
Similar Terminals - Ring Connectors from TE Connectivity AMP Connectors and other manufacturers
