52041-3 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
52041-3 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 4 days ago)
Factory Lead Time
4 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging, Stud
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Poly-Vinyl Chloride (PVC)
Packaging
Bulk
Series
Plasti-Grip
Published
2006
Feature
Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Red
Gender
Female
Voltage - Rated
600V
HTS Code
8536.90.40.00
Orientation
Straight
Depth
12.14mm
Voltage - Rated AC
600V
Wire Gauge
8 AWG
ELV
Compliant
Wire/Cable Gauge
8 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.330 (8.38mm)
Insulation
Insulated
Terminal Type
Circular
Stud/Tab Size
1/4 Stud
Insulated Wire Support
Yes
Heavy Duty
No
Stud Diameter
6.731 mm
Number of Holes
1
Stud Size
M6
Length
40.64mm
Width
12.1mm
Thickness
0.040 1.02mm
Length - Overall
1.600 40.64mm
Width - Outer Edges
0.478 12.14mm
Tongue Thickness
1.02mm
REACH SVHC
Unknown
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:6119 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.03000
$1.03
10
$0.90700
$9.07
25
$0.85400
$21.35
50
$0.81820
$40.91
100
$0.78270
$78.27
250
$0.71152
$177.88
500
$0.64036
$320.18
52041-3 Product Details

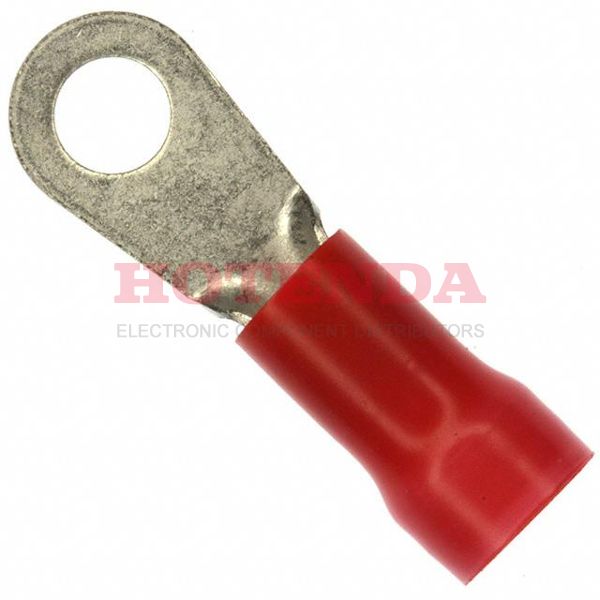

Description: TE Connectivity / AMP Terminals 52041-3 Ring Connectors are a type of ring tongue terminal designed for use in electrical connections. They are made of tin-plated copper and feature a 8AWG wire size, 40.64mm length, and 12.14mm width. They are sold as loose pieces.
Features: - Made of tin-plated copper for superior conductivity and corrosion resistance - 8AWG wire size for reliable connections - 40.64mm length and 12.14mm width for easy installation - Sold as loose pieces for convenience
Applications: TE Connectivity / AMP Terminals 52041-3 Ring Connectors are ideal for use in a variety of electrical applications, such as automotive, marine, and industrial wiring. They are suitable for use in applications where a secure connection is required, such as in battery cables, starter motors, and alternators.
