Name: 5177986-3
Brand: TE Connectivity AMP Connectors
SKU: 5177986-3
Price: 6.47000 USD
Availability: InStock

new-10%

5177986-3

Manufacturer part number:5177986-3

Manufacturer:TE Connectivity AMP Connectors

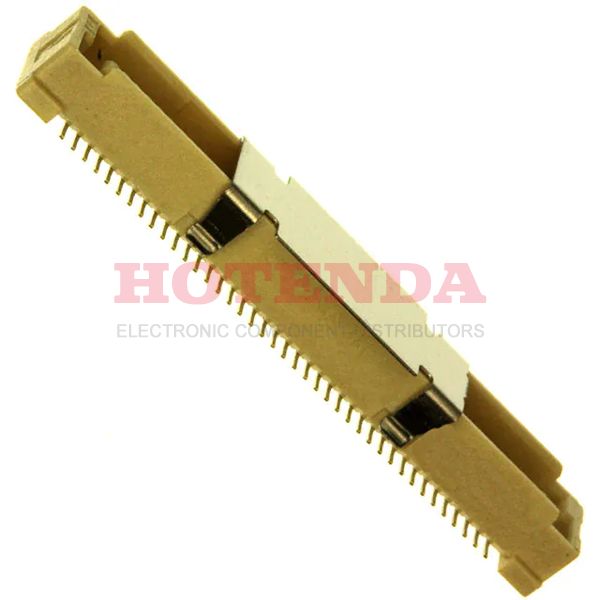

Description:Plug, Center Strip ContactsTape & Reel (TR)2 Rows0.031 0.80mmSurface Mount80 PositionsFree Height (FH)GoldSMD/SMTBrass

Case Package:SOT-23

Datasheet:5177986-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Brass
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
PCB Mount Retention	Without
Packaging	Tape & Reel (TR)
Published	2003
Series	Free Height (FH)
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Connector Type	Plug, Center Strip Contacts
Number of Positions	80
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Number of Rows	2
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.031 0.80mm
Total Number of Contacts	80
Orientation	Vertical
Depth	6mm
Contact Finish	Gold
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	MALE
Housing Color	Natural
Operating Supply Voltage	100V
Contact Resistance	30mOhm
Insulation Resistance	2MOhm
Row Spacing	2.4 mm
ELV	Compliant
Max Voltage Rating (AC)	100V
Sealable	No
Contact Current Rating	500mA
Circuit Application	Signal
Mating Alignment	With
Keyed	Yes
Height	5mm
Length	37.8mm
Contact Finish Thickness	8.00μin 0.203μm
Contact Finish Thickness - Mating	200 nm
Height Above Board	0.191 4.85mm
Stack Height (Mating)	5mm 9mm 13mm 17mm
Stack Height	8.9916mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

5177986-3 Product Details

5177986-3 Overview

Packaging for this item is Plug, Center Strip Contacts.It is necessary to use a Tape & Reel (TR) case for packaging the product.There is a mounting type of Surface Mount for this device.This product is part of the Free Height (FH) Series.In operation, it is possible to ensure that Board Guide is maintained.This part requires a Surface Mount socket for mounting.You should use it when it's below 125°C.A minimum temperature of -40°C is required for the operation of this device.Since this device is suitable for operation with a 100V supply, it can be used with that supply.
