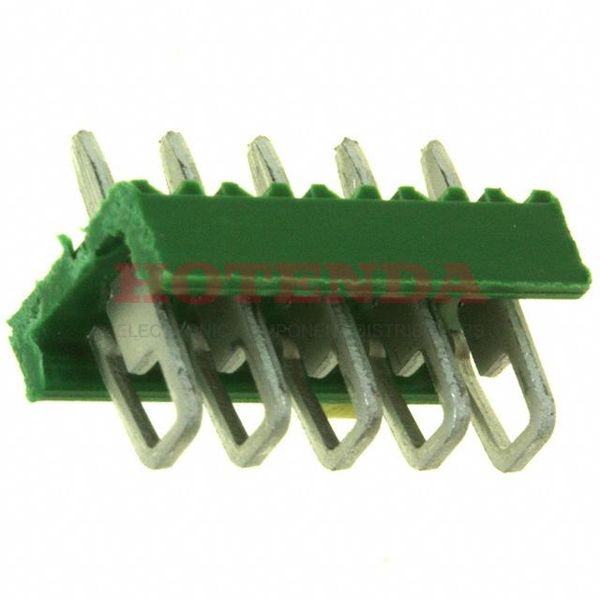

Name: 5164713-5
Brand: TE Connectivity AMP Connectors
SKU: 5164713-5
Price: 1.04000 USD
Availability: InStock

new-10%

5164713-5

Manufacturer part number:5164713-5

Manufacturer:TE Connectivity AMP Connectors

Description:Mini-Match Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 5-Position Board to Cable/Wire 0.118 3.00mm Height

Case Package:SOT-23

Datasheet:5164713-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	18 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Rectangular
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Housing Material	Thermoplastic
Packaging	Bulk
Series	Mini-Match
Published	2005
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	5
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Contact Finish - Mating	Tin
Contact Type	Tab
Orientation	Vertical
Depth	6.3mm
Insulation Height	0.118 3.00mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.098 2.50mm
Contact Length - Post	0.126 3.20mm
Shrouding	Unshrouded
Housing Color	Green
Overall Contact Length	0.358 9.09mm
Contact Resistance	10mOhm
ELV	Compliant
Max Voltage Rating (AC)	250V
Wire/Cable Type	Discrete
Max Voltage Rating (DC)	300.25kV
Sealable	No
Length	12.5mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

5164713-5 Product Details

5164713-5 Overview

Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Mini-Match Series.You should use it when it's below 85°C.A minimum temperature of -40°C is required for the operation of this device.Through Hole is used to mount the part.
