Name: 5-146277-8
Brand: TE Connectivity AMP Connectors
SKU: 5-146277-8
Price: 0.89000 USD
Availability: InStock

new-10%

5-146277-8

Manufacturer part number:5-146277-8

Manufacturer:TE Connectivity AMP Connectors

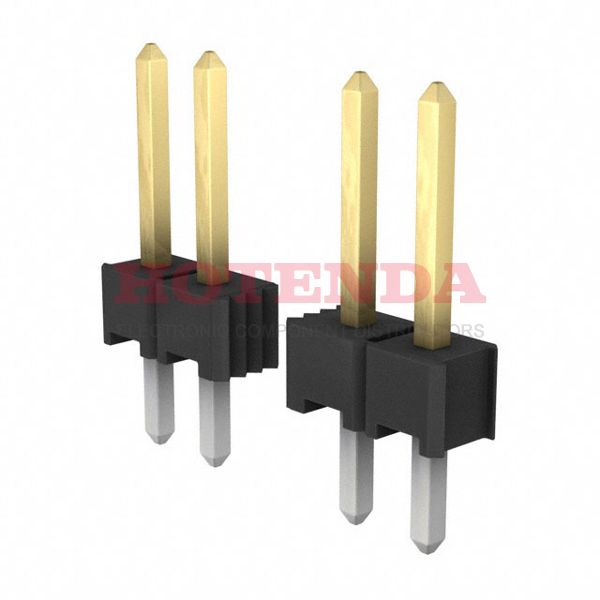

Description:AMPMODU Mod II Series 1-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Liquid Crystal Polymer (LCP) 8-Position Board to Board or Cable 0.090 2.29mm Height

Case Package:SOT-23

Datasheet:5-146277-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-65°C~105°C
Packaging	Bulk
Series	AMPMODU Mod II
Published	2005
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	8
Number of Rows	1
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3A
Orientation	Straight
Terminal Pitch	2.54mm
Depth	2.34mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Number Of PCB Rows	1
Contact Finish - Post	Tin
Contact Length - Mating	0.318 8.08mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.092 inch
Contact Gender	Male
Overall Contact Length	0.533 13.55mm
Length	19.91mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

5-146277-8 Product Details

5-146277-8 Overview

This product is packaged in a Header, Breakaway box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the AMPMODU Mod II Series.By Through Hole, the part is mounted.Operating temperature is set to -65°C~105°C.
