Name: 5-146133-4
Brand: TE Connectivity AMP Connectors
SKU: 5-146133-4
Price: 0.65000 USD
Availability: InStock

new-10%

5-146133-4

Manufacturer part number:5-146133-4

Manufacturer:TE Connectivity AMP Connectors

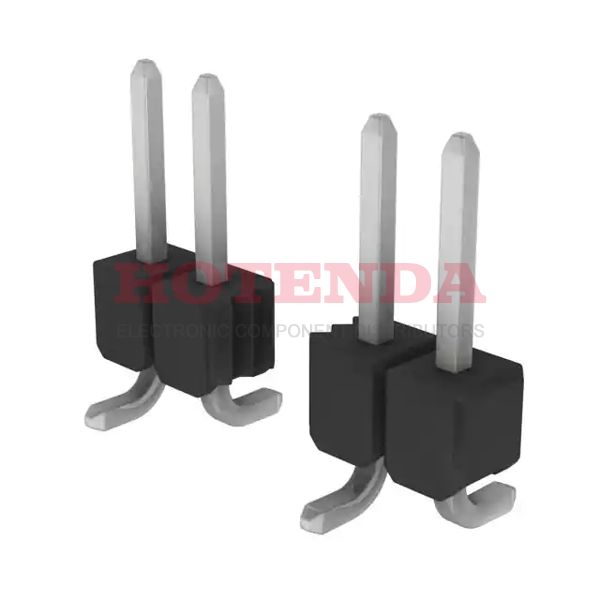

Description:AMPMODU Mod II Series 1-Row Header, Breakaway Solder Copper Alloy Tube Surface Mount Tin Liquid Crystal Polymer (LCP) 6-Position Board to Board or Cable 0.090 2.29mm Height

Case Package:SOT-23

Datasheet:5-146133-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	15 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-65°C~105°C
Packaging	Tube
Series	AMPMODU Mod II
Published	2008
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	6
Number of Rows	1
Voltage - Rated	30VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	6
Orientation	Vertical
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Approval Agency	CSA
Shrouding	Unshrouded
Contact Length - Mating	0.320 8.13mm
Contact Gender	Male
UL Flammability Code	94V-0
Housing Color	Black
Lead Length	2.29mm
Operating Supply Voltage	30V
Insulation Resistance	5GOhm
Row Spacing	2.54 mm
ELV	Compliant
Contact Current Rating	3A
Mating Post Length	8.128mm
High Speed Serial Data Connector	No
High Temperature Compatible	Yes
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
PCB Thickness	1.5748mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

5-146133-4 Product Details

5-146133-4 Overview

The packaging contains Header, Breakaway.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tube.Product number AMPMODU Mod II belongs to the AMPMODU Mod II Series.There is a Through Hole mount on the part.A 30V voltage is used to supply power to this memory.This device operates at a temperature of -65°C~105°C.
