Name: 5-102203-3
Brand: TE Connectivity AMP Connectors
SKU: 5-102203-3
Price: 2.59000 USD
Availability: InStock

new-10%

5-102203-3

Manufacturer part number:5-102203-3

Manufacturer:TE Connectivity AMP Connectors

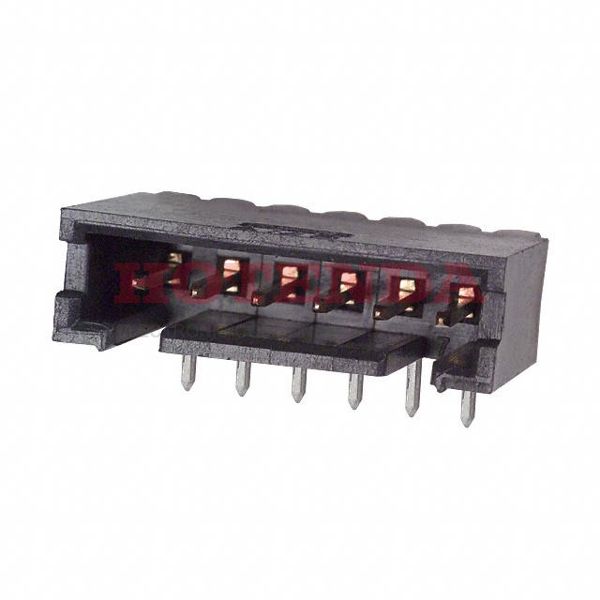

Description:5-102203-3 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:5-102203-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Thermoplastic
PCB Mounting Orientation	Right Angle
Operating Temperature	-65°C~105°C
Packaging	Tube
Published	2007
Series	AMPMODU Mod II
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	6
Number of Rows	1
Gender	Male
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Depth	13.94mm
Insulation Height	0.214 5.44mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reliability	COMMERCIAL
Approval Agency	CSA
Contact Length - Post	0.110 2.79mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	1
Lead Pitch	2.54mm
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.229 inch
Housing Color	Black
Lead Length	2.794mm
Rated Current (Signal)	3A
Insulation Resistance	5GOhm
Row Spacing	2.54 mm
ELV	Compliant
Dielectric Withstanding Voltage	750VAC V
Contact Current Rating	3A
Mating Post Length	6.1mm
High Temperature Housing	No
Shrouded End Dimension	1.778 mm
Length	18.29mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
Length - Tail	2.79mm
PCB Thickness	1.397mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

5-102203-3 Product Details

5-102203-3 Overview

Packaging for this item is Header.Mounting type Through Hole, Right Angle is selected for the device.It is necessary to use a Tube case for packaging the product.A product of the AMPMODU Mod II Series, it belongs to the range of products of that series.By Through Hole, the part is mounted.-65°C~105°C Operating Temperature is the default operating temperature for the device.
