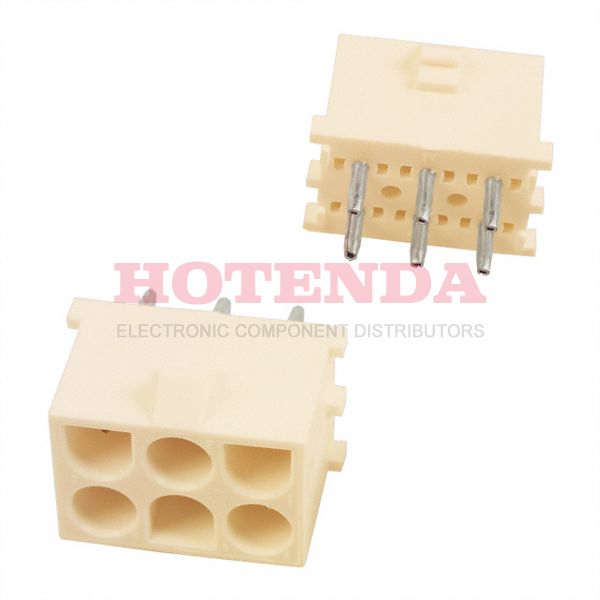

Name: 350431-1
Brand: TE Connectivity AMP Connectors
SKU: 350431-1
Price: 0.85000 USD
Availability: InStock

new-10%

350431-1

Manufacturer part number:350431-1

Manufacturer:TE Connectivity AMP Connectors

Description:350431-1 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:350431-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 months ago)
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mount	PCB, Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polyamide (PA), Nylon
Housing Material	Nylon
Packaging	Bulk
Published	1997
Series	Universal MATE-N-LOK
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Max Operating Temperature	221°C
Min Operating Temperature	-40°C
Applications	General Purpose
Number of Rows	3
Voltage - Rated	600V
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Vertical
Depth	20.32mm
Insulation Height	0.550 13.97mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	12A
Pitch - Mating	0.250 6.35mm
Insulation Color	Natural
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	600V
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.250 (6.35mm)
Contact Length - Post	0.155 3.94mm
Shrouding	Shrouded - 4 Wall
Lead Pitch	6.35mm
Body Breadth	0.55 inch
Contact Gender	Male
UL Flammability Code	94V-2
Empty Shell	NO
Operating Supply Voltage	600V
Working Voltage	600V
Contact Resistance	3.5mOhm
Insulation Resistance	1GOhm
ELV	Compliant
Max Voltage Rating (AC)	600V
Dielectric Withstanding Voltage	2900VAC V
Number of Ports	1
Durability	50 Cycles
Sealable	No
Contact Current Rating	12A
Circuit Application	Power
Hole Diameter	1.8 mm
Contact Retention	Without
VDE Tested	Yes
Height	13.97mm
Length	20.32mm
Width	13.97mm
Plating Thickness	2.54μm
PCB Thickness	1.57mm
Material Flammability Rating	UL94 V-2
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

350431-1 Product Details

350431-1 Overview

It comes in a Header package.Mounting type is Through Hole.The product is packaged in a Bulk case.Among the products in the Universal MATE-N-LOK Series, it is one of the most popular.Ideally, it should be used when the temperature is below 221°C.A minimum temperature of -40°C is required for the operation of this device.The device has 1 ports for managing a variety of tasks.It is possible for the device to be used for the application General Purpose.There is a mounting hole at PCB, Through Hole.A chip with 6 terminations is available.Voltage of the memory's operating supply is 600V.
