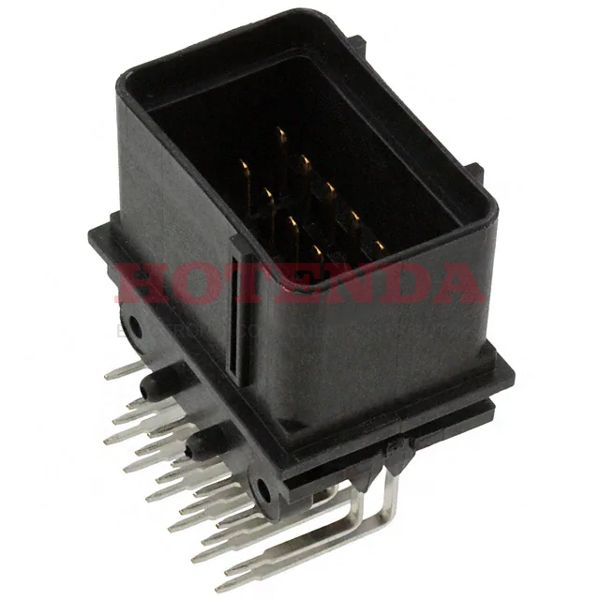

Name: 344103-1
Brand: TE Connectivity AMP Connectors
SKU: 344103-1
Price: 17.32000 USD
Availability: InStock

new

344103-1

Manufacturer part number:344103-1

Manufacturer:TE Connectivity AMP Connectors

Description:EconoSeal III 070 Series 3-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA), Nylon, Glass Filled 18-Position Board to Cable/Wire 1.165 29.60mm Height

Case Package:SOT-23

Datasheet:344103-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	44 Weeks
Contact Material	Brass
Contact Plating	Tin, Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Rectangular
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Shell Material	GLASS FILLED POLYAMIDE
Housing Material	Nylon
Packaging	Bulk
Series	EconoSeal III 070
Published	2005
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	18
Number of Rows	3
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Tab
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	18
Orientation	Right Angle
Shielding	Shielded
Insulation Height	1.165 29.60mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	10A
Pitch - Mating	0.197 5.00mm
Insulation Color	Black
Row Spacing - Mating	0.236 (6.00mm)
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Gender	MALE
Empty Shell	NO
ELV	Compliant
Number of Ports	1
Circuit Application	Signal
Height	23mm
Length	52.71mm
Width	40.6908mm
Tab Thickness	640μm
Width - Tab	1.8034mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant

344103-1 Product Details

344103-1 Overview

It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the EconoSeal III 070 Series of products.It features 1 ports for managing a variety of tasks.Its Board Guide feature renders it more powerful in many ways.The part is mounted by Through Hole.
