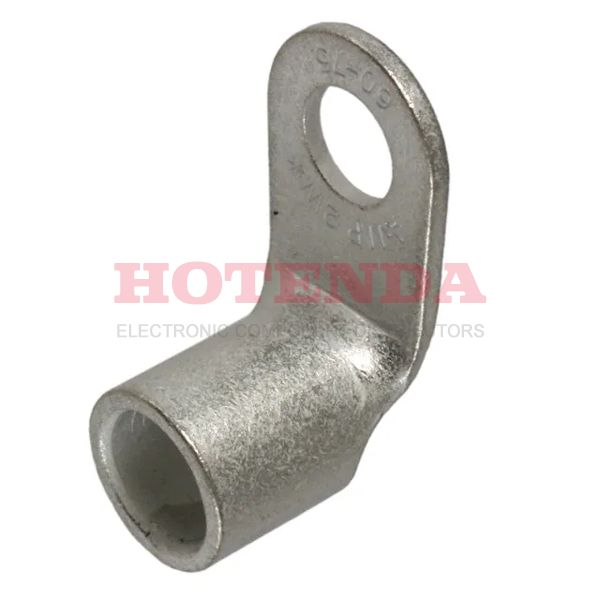

Name: 322870-1
Brand: TE Connectivity AMP Connectors
SKU: 322870-1
Price: 4.23000 USD
Availability: InStock

new-10%

322870-1

Manufacturer part number:322870-1

Manufacturer:TE Connectivity AMP Connectors

Description:322870-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:322870-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	4 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Stud
Mounting Type	Free Hanging (In-Line), Right Angle
Packaging	Bulk
Series	Solistrand
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
ECCN Code	EAR99
HTS Code	8536.90.40.00
Depth	15.87mm
Wire Gauge	2 AWG
ELV	Compliant
Wire/Cable Gauge	2 AWG
Terminal and Terminal Block Type	RING TERMINAL
Insulation	Non-Insulated
Terminal Type	Circular
Wire Cross Section	42.4 mm2
Stud/Tab Size	5/16 Stud
Heavy Duty	No
Stud Diameter	8.3312 mm
Number of Holes	1
Stud Size	M8
Length	38.7858mm
Plating Thickness	2.54μm
Thickness	0.070 1.78mm
Diameter - Inside	9.39 mm
Width - Outer Edges	0.625 15.88mm
Material Thickness	1.778mm
Tongue Thickness	1.78mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

322870-1 Product Details

Description: The TE Connectivity / AMP Terminals 322870-1 Ring Connectors are a two-wire crimp-style electrical connector designed for use in a variety of applications. The connectors feature a #5/16 crimp size and are rated for up to 2 AWG wire.

Features:
- Rated for up to 2 AWG wire
- #5/16 crimp size
- Tin-plated copper construction
- UL and CSA approved

Applications: The TE Connectivity / AMP Terminals 322870-1 Ring Connectors are suitable for use in a variety of applications, including automotive, industrial, and consumer electronics. They are commonly used to connect two wires together in a secure and reliable manner.
