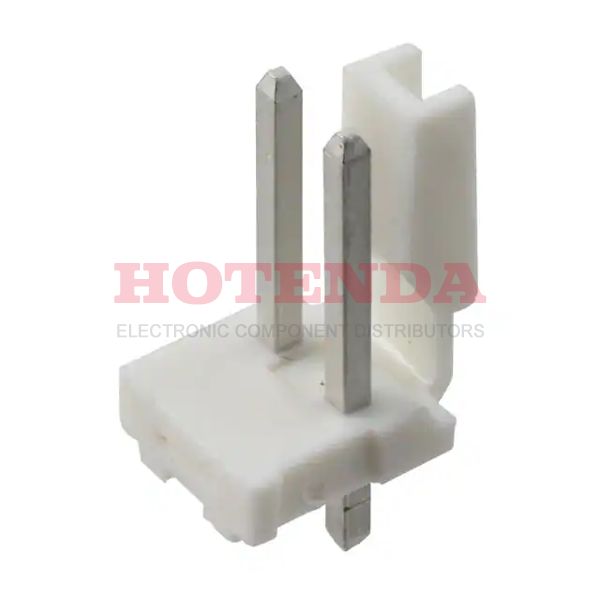

Name: 3-644611-2
Brand: TE Connectivity AMP Connectors
SKU: 3-644611-2
Price: 1.51000 USD
Availability: InStock

new-10%

3-644611-2

Manufacturer part number:3-644611-2

Manufacturer:TE Connectivity AMP Connectors

Description:3-644611-2 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:3-644611-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Thermoplastic, Glass Filled
Housing Material	Polyester
Underplate Material	Nickel
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2008
Series	MTA-156
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Applications	General Purpose, Industrial
Number of Rows	1
Voltage - Rated	600VAC
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	Varies by WireGAuge
Orientation	Vertical
Terminal Pitch	3.96mm
Depth	10.8mm
Insulation Height	0.545 13.84mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	7A
Pitch - Mating	0.156 3.96mm
Voltage - Rated AC	600V
Approval Agency	CSA
Contact Length - Post	0.125 3.18mm
Shrouding	Shrouded - 1 Wall
Contact Length - Mating	0.450 11.43mm
Contact Gender	Male
UL Flammability Code	94V-0
Housing Color	Natural
Lead Length	3.18mm
Operating Supply Voltage	600V
Overall Contact Length	0.700 17.78mm
Contact Resistance	3mOhm
ELV	Compliant
Max Voltage Rating (AC)	600V
Sealable	No
Contact Current Rating	7A
Circuit Application	Power
Number of Power Positions	2
Mating Post Length	11.43mm
Contact Retention	Without
Height	13.843mm
Length	7.8mm
Plating Thickness	150μm
Contact Finish Thickness - Mating	150.0μin 3.81μm
Contact Finish Thickness - Post	150.0μin 3.81μm
PCB Thickness	1.57mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

3-644611-2 Product Details

3-644611-2 Overview

Packaging is Header.Through Hole is the mounting type of the device.Packaging for the product is carried out via a Bulk case.The product is a member of the MTA-156 Series.A possible application for the device is General Purpose, Industrial.This part is mounted by Through Hole. Voltage of the memory's operating supply is 600V.In this case, the device runs at -55°C~105°C Operating Temperature.
