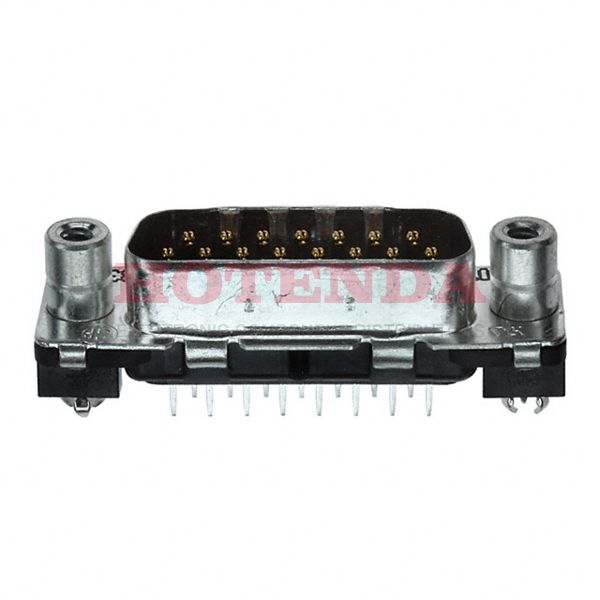

Name: 3-338310-2
Brand: TE Connectivity AMP Connectors
SKU: 3-338310-2
Price: 10.68000 USD
Availability: InStock

new

3-338310-2

Manufacturer part number:3-338310-2

Manufacturer:TE Connectivity AMP Connectors

Description:3-338310-2 datasheet pdf and D-Sub Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:3-338310-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Round
Shell Material	Steel
Material	Polyester
Dielectric Material	Polyester, Glass Filled
Housing Material	Glass
Body Material	Metal
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~105°C
Packaging	Tray
Published	2007
Series	AMPLIMITE HDP-20
Feature	Board Lock, Grounding Indents
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Male Pins
Number of Positions	15
Color	Black
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.30
Subcategory	D Type Connectors
Voltage - Rated DC	250V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	2.74mm
Total Number of Contacts	15
Orientation	Vertical
Shielding	Unshielded
Depth	12.6mm
Current Rating	6A
Shell Finish	TIN
Reference Standard	UL, CSA
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
UL Flammability Code	94V-0
Lead Length	3.2mm
Empty Shell	NO
Rated Current (Signal)	6A
Insulation Resistance	5000000000Ohm
Row Spacing	2.8448 mm
Flange Feature	Mating Side, Female Screwlock (4-40)
ELV	Compliant
Plating	Tin
Connector Style	D-Sub
Number of Ports	1
Sealable	No
Shell Size, Connector Layout	2 DA A
Hole Diameter	5 mm
Preloaded	Yes
Mating Connector Lock	With
Length	39.2mm
Width	11.7mm
PCB Thickness	1.6mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

3-338310-2 Product Details

3-338310-2 Overview

This product is packaged in a Plug, Male Pins carton.Mounting type is Through Hole.This product is packaged in a case marked Tray.It belongs to the AMPLIMITE HDP-20 Series of products.With 1 ports, it is capable of managing a wide range of tasks.Its Board Lock, Grounding Indents feature renders it more powerful in many ways.There's a Through Hole mount on the part.-55°C~105°C Operating Temperature is what the device runs at.
