282089-1

Name: 282089-1
Brand: TE Connectivity AMP Connectors
SKU: 282089-1
Price: 1.50000 USD
Availability: InStock

new-10%

Manufacturer part number:282089-1

Manufacturer:TE Connectivity AMP Connectors

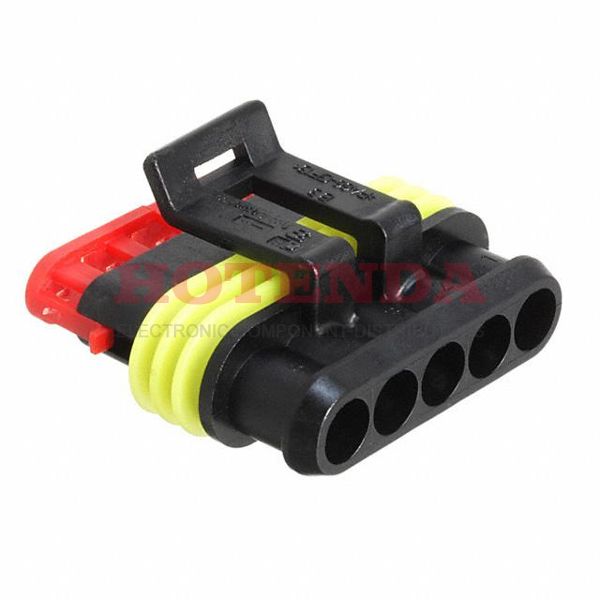

Description:1 Rows Plug Bulk Black 5 Positions Free Hanging (In-Line) Female Socket Crimp Superseal

Case Package:SOT-23

Datasheet:282089-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	15 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Packaging	Bulk
Series	Superseal
Published	1998
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Number of Positions	5
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Color	Black
Number of Rows	1
Gender	Female
Fastening Type	Latch Lock
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	24V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.236 6.00mm
Total Number of Contacts	5
Orientation	Straight
Current Rating	14A
Reliability	COMMERCIAL
Body Breadth	0.366 inch
Empty Shell	NO
Contact Resistance	3mOhm
Insulation Resistance	200MOhm
Note	Contacts Not Included
ELV	Compliant
Polarization Key	POLARIZED HOUSING
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Circuit Application	Signal
Contact Termination	Crimp
Contact Design	PREASSEM CONN
Mating Tab Width	1.4986mm
Hybrid Connector	No
Polarized	Yes
Height	32.2072mm
Length	40.9mm
Width	9.3mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Not Applicable
Ratings	IP67
