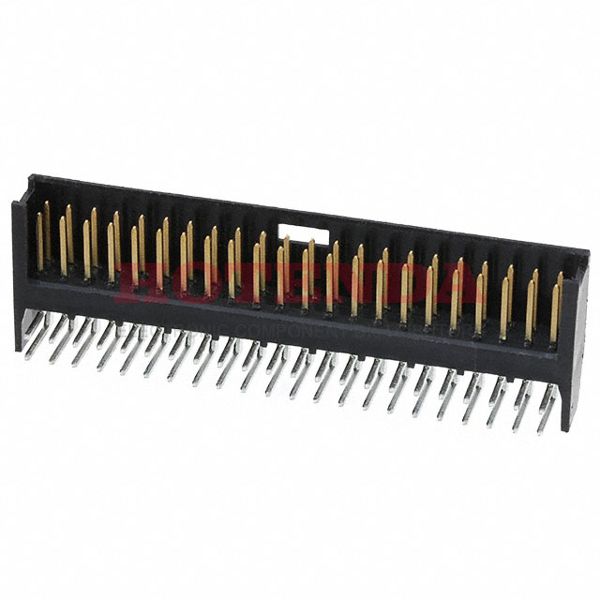

Name: 280393-2
Brand: TE Connectivity AMP Connectors
SKU: 280393-2
Price: 7.09000 USD
Availability: InStock

new

280393-2

Manufacturer part number:280393-2

Manufacturer:TE Connectivity AMP Connectors

Description:280393-2 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:280393-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	33 Weeks
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Contact Material	Brass
Contact Plating	Gold, Tin
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Thermoplastic
PCB Mounting Orientation	Right Angle
Operating Temperature	-40°C~80°C
Packaging	Bulk
Published	2007
Series	AMPMODU Mod II
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	44
Number of Rows	2
Voltage - Rated	40V
Additional Feature	AMPMODU, SHROUDED
Fastening Type	Detent Lock
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Depth	17.4mm
Insulation Height	0.276 7.00mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.138 3.50mm
Shrouding	Shrouded - 3 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.260 6.60mm
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
UL Flammability Code	94V-0
Lead Length	3.5052mm
Rated Current (Signal)	3A
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.1 inch
ELV	Compliant
Dielectric Withstanding Voltage	1050VAC V
Mating Post Length	6.604mm
High Temperature Housing	No
Shrouded End Dimension	1.65 mm
Length	58.5mm
Plating Thickness	2.5μm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	98.4μin 2.50μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

280393-2 Product Details

280393-2 Overview

The product comes in a package of Header.There is a Through Hole, Right Angle mounting type for the device.An Bulk case is utilized for packaging the product.This is from the AMPMODU Mod II Series.Besides that, there's also AMPMODU, SHROUDED, to name a few.It is mounted by Through Hole.There is no operating temperature for the device.
