Name: 225973-4
Brand: TE Connectivity AMP Connectors
SKU: 225973-4
Price: 51.85000 USD
Availability: InStock

new

225973-4

Manufacturer part number:225973-4

Manufacturer:TE Connectivity AMP Connectors

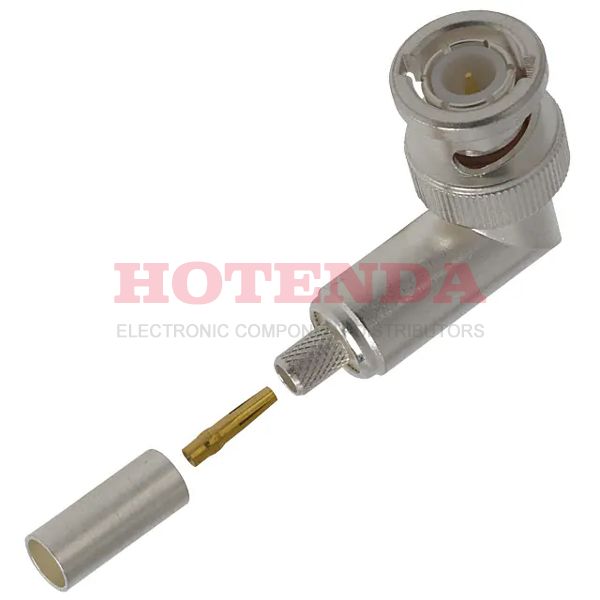

Description:Plug, Male Pin Bayonet Lock 50Ohm Bulk BNC Crimp 1 Port Polytetrafluoroethylene (PTFE) -55°C~85°C

Case Package:SOT-23

Datasheet:225973-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	25 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line), Right Angle
Insulation Material	Polytetrafluoroethylene
Dielectric Material	Polytetrafluoroethylene (PTFE)
Body Material	Brass
Center Contact Plating	Gold
Operating Temperature	-55°C~85°C
Packaging	Bulk
Published	2005
JESD-609 Code	e4
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug, Male Pin
Resistance	50Ohm
Number of Positions	1
Gender	Male
Voltage - Rated	500V
Fastening Type	Bayonet Lock
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Option	GENERAL PURPOSE
Total Number of Contacts	1
Orientation	Right Angle
Frequency	4GHz
Reliability	COMMERCIAL
Mating Information	225398-6
Housing Color	Silver
Polarity	Normal, Standard
Contact Style	COAX
Insulation Resistance	5GOhm
ELV	Non-Compliant
Impedance	50Ohm
Connector Style	BNC
Number of Ports	1
Sealable	No
Mating Cycles	500
Contact Termination	Crimp
Includes	3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss	0.2dB
Cable Group	RG-142, 142A, 142B
VSWR	1.3
Length	26.56mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

225973-4 Product Details

225973-4 Overview

In general, the device resistance should be kept within the range of 50Ohm.Packaging for this item is Plug, Male Pin.Free Hanging (In-Line), Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The device has 1 ports for managing a variety of tasks.It is mounted by Cable, Free Hanging.It operates at an operating temperature of -55°C~85°C.Using a 4GHz frequency, it can perform efficiently.
