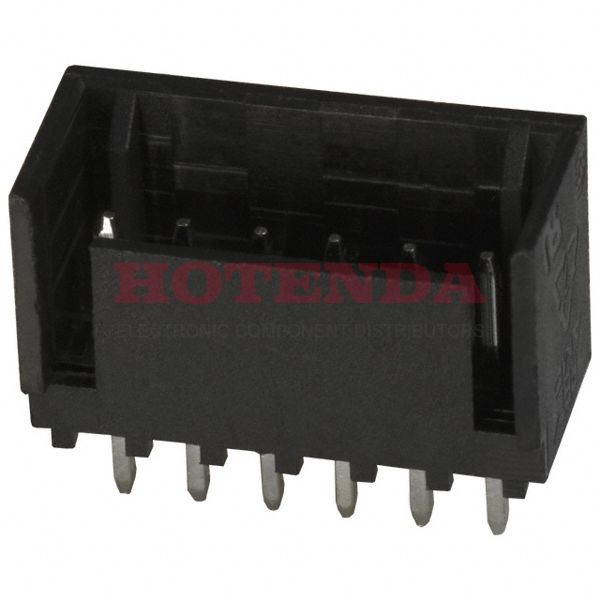

Name: 2-644861-6
Brand: TE Connectivity AMP Connectors
SKU: 2-644861-6
Price: 1.23000 USD
Availability: InStock

new-10%

2-644861-6

Manufacturer part number:2-644861-6

Manufacturer:TE Connectivity AMP Connectors

Description:2-644861-6 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:2-644861-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Copper Alloy
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyester
Housing Material	Polyester
PCB Mounting Orientation	Vertical
PCB Mount Retention	Without
Underplate Material	Nickel
PCB Mount Alignment	Without
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2008
Series	MTA-100
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	6
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Color	Black
Applications	General Purpose
Number of Rows	1
Gender	Male
Voltage - Rated	250VAC
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
Contact Type	Male Pin
Current Rating (Amps)	Varies by WireGAuge
Pitch	2.54mm
Orientation	Vertical
Depth	7.95mm
Insulation Height	0.410 10.41mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	5A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Approval Agency	CSA
Contact Length - Post	0.140 3.56mm
Shrouding	Shrouded - 4 Wall
Lead Pitch	2.54mm
Number of Contacts	6
Contact Finish - Post	Tin
Contact Length - Mating	0.200 5.08mm
Contact Gender	Male
Housing Color	Black
Lead Length	3.56mm
Operating Supply Voltage	250V
Overall Contact Length	0.440 11.18mm
Contact Style	Straight
Contact Resistance	6mOhm
Max Voltage Rating (AC)	250V
Plating	Tin
Sealable	No
Contact Current Rating	5A
Circuit Application	Signal
Mating Retention	With
Mating Post Length	5.1mm
Height	10.41mm
Length	19.91mm
Width	684μm
Plating Thickness	6.3μm
Length - Tail	3.56mm
PCB Thickness	1.6002mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

2-644861-6 Product Details

2-644861-6 Overview

This product is packaged in a Header box.This device is mounted in the Through Hole position.Packaging the product involves using a Bulk case.This product is part of the MTA-100 Series.It's best to use it when the temperature is below 221°C.There is a minimum temperature requirement of [0°C] for this device.There is the possibility of using the device for General Purpose.It is mounted by Through Hole.Voltage of the memory's operating supply is 250V.It runs at -55°C~105°C Operating Temperature.
