2-323914-2 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 2 days ago)
Factory Lead Time
30 Weeks
Contact Material
Copper
Contact Plating
Nickel, Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Polyamide (PA), Nylon
Packaging
Bulk
Series
PIDG
Published
2008
Feature
Insulation Restriction, Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Yellow, Blue Stripe
Gender
Female
HTS Code
8536.90.40.00
Voltage - Rated DC
300V
Depth
5.16mm
Contact Finish
Nickel
Voltage - Rated AC
300V
Wire Gauge
24 AWG
ELV
Compliant
Plating
Tin
Wire/Cable Gauge
24 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.031 ~ 0.055 (0.79mm ~ 1.40mm)
Insulation
Insulated
Terminal Type
Circular
Wire/Cable Diameter
2.08 mm
Wire Cross Section
0.24 mm2
Stud/Tab Size
4 Stud
Insulated Wire Support
Yes
Heavy Duty
No
Stud Diameter
3.0226 mm
Number of Holes
1
Stud Size
M2.5
Length
16.4084mm
Thickness
0.018 0.46mm
Length - Overall
0.691 17.55mm
Width - Outer Edges
0.203 5.16mm
Tongue Thickness
500μm
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:5498 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.27000
$1.27
10
$1.11800
$11.18
25
$1.05200
$26.3
50
$1.00840
$50.42
100
$0.96450
$96.45
250
$0.87684
$219.21
500
$0.78914
$394.57

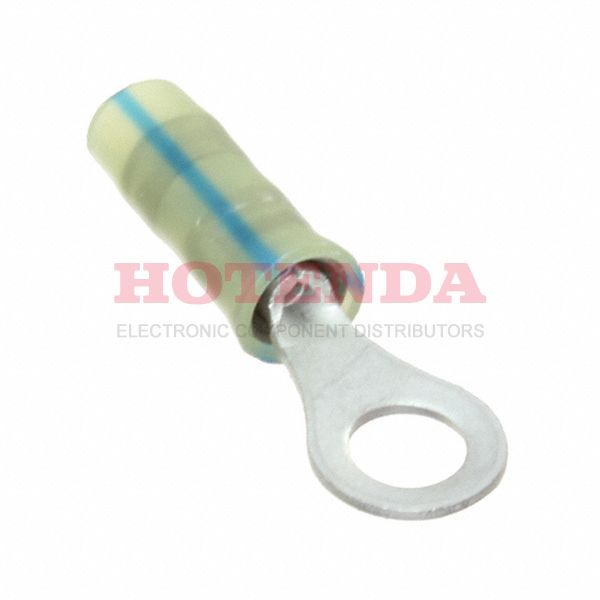

2-323914-2 Product Details
Description: The TE Connectivity / AMP Terminals 2-323914-2 Ring Connectors are a reliable and durable solution for electrical connections. These terminals are made of nylon and feature a yellow/blue color coding for easy identification. They are designed to accommodate #10-12 AWG wire sizes and provide a secure connection.
Features: - Made of nylon for durability and reliability - Color coded yellow/blue for easy identification - Accommodates #10-12 AWG wire sizes - Provides a secure connection
Applications: The TE Connectivity / AMP Terminals 2-323914-2 Ring Connectors are suitable for a variety of applications, including automotive, industrial, and consumer electronics. They are ideal for connecting wires in a variety of electrical systems, such as lighting, power distribution, and control systems.
