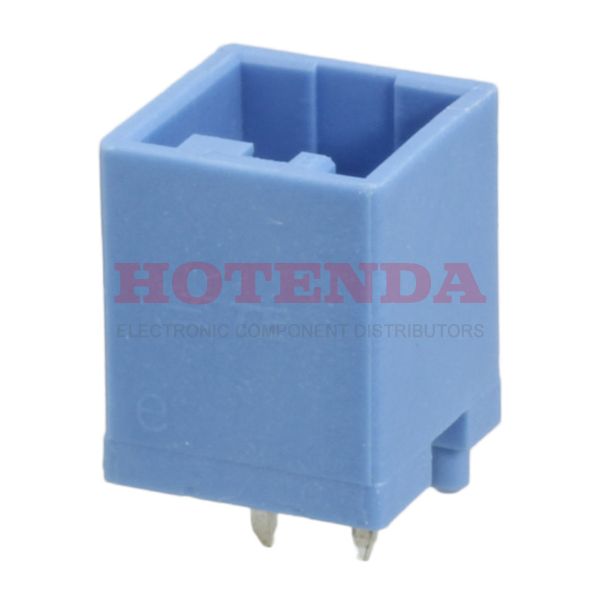

Name: 2-1971798-2
Brand: TE Connectivity AMP Connectors
SKU: 2-1971798-2
Price: 0.27000 USD
Availability: InStock

new-10%

2-1971798-2

Manufacturer part number:2-1971798-2

Manufacturer:TE Connectivity AMP Connectors

Description:2-1971798-2 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:2-1971798-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Thermoplastic
Housing Material	Nylon
PCB Mounting Orientation	Vertical
PCB Mount Retention	With
Underplate Material	Nickel
Operating Temperature	-30°C~105°C
Packaging	Bulk
Published	2012
Series	Grace Inertia, GIC
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
Connector Type	Header
Number of Positions	2
Applications	General Purpose
Number of Rows	1
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Type	Male Pin
Current Rating (Amps)	Varies by WireGAuge
Orientation	Vertical
Insulation Height	0.346 8.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.098 2.50mm
Shrouding	Shrouded - 4 Wall
Contact Gender	Male
Housing Color	Blue
Operating Supply Voltage	50V
Contact Style	Straight
ELV	Compliant
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	22 AWG
Sealable	No
Contact Current Rating	3A
Height	7.38mm
Length	7.5mm
Plating Thickness	2μm
Contact Finish Thickness - Mating	2μm
Length - Tail	3mm
PCB Thickness	2mm
Width - Tab	500.38μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

2-1971798-2 Product Details

2-1971798-2 Overview

Packaging is in the form of Header.Through Hole is the mounting type of the device.We use a Bulk case to package the product.This product is from the Grace Inertia, GIC Series.A possible application is General Purpose.There are a number of advantages to its Board Guide feature.Mounted by Through Hole.A 50V voltage is used to supply power to this memory.-30°C~105°C Operating Temperature is the default operating temperature for the device.
