Name: 2-1445085-2
Brand: TE Connectivity AMP Connectors
SKU: 2-1445085-2
Price: 2.01000 USD
Availability: InStock

new-10%

2-1445085-2

Manufacturer part number:2-1445085-2

Manufacturer:TE Connectivity AMP Connectors

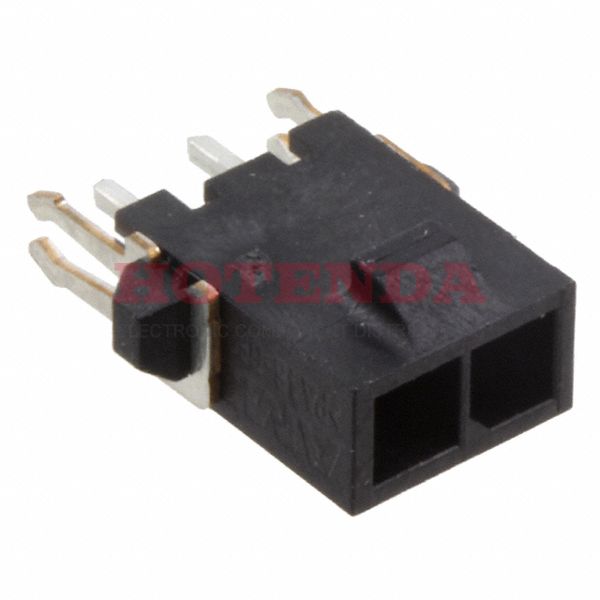

Description:Micro MATE-N-LOK Series 1-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 2-Position Board to Cable/Wire 0.364 9.25mm Height

Case Package:SOT-23

Datasheet:2-1445085-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	19 Weeks
Contact Material	Brass
Contact Plating	Tin, Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Housing Material	Nylon
PCB Mounting Orientation	Vertical
Operating Temperature	-40°C~105°C
Packaging	Tray
Series	Micro MATE-N-LOK
Published	2008
Feature	Board Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	Solder
Connector Type	Header
Number of Positions	2
Max Operating Temperature	221°C
Min Operating Temperature	-40°C
Color	Black
Applications	General Purpose
Number of Rows	1
Voltage - Rated	250V
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	Varies by WireGAuge
Pitch	2.9972mm
Orientation	Vertical
Depth	5.67mm
Insulation Height	0.364 9.25mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	5A
Pitch - Mating	0.118 3.00mm
Insulation Color	Black
Approval Agency	CSA
Contact Length - Post	0.125 3.18mm
Shrouding	Shrouded - 4 Wall
Number of Contacts	2
Contact Finish - Post	Tin
Contact Gender	Male
Housing Color	Black
Operating Supply Voltage	250V
ELV	Compliant
Max Voltage Rating (AC)	250V
Plating	Gold
Number of Ports	1
Sealable	No
Contact Current Rating	5A
Circuit Application	Power
Number of Power Positions	2
Contact Retention	Without
VDE Tested	Yes
Length	10.14mm
Plating Thickness	2.54μm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
PCB Thickness	62μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

2-1445085-2 Product Details

2-1445085-2 Overview

The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Micro MATE-N-LOK Series.Use it when the temperature is below 221°C.Temperatures below -40°C are required for this device to operate.The device has 1 ports for managing a variety of tasks.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Lock feature.It is mounted by Through Hole.It has terminations of 2.Its operating supply voltage is 250V.It operates at an operating temperature of -40°C~105°C.
