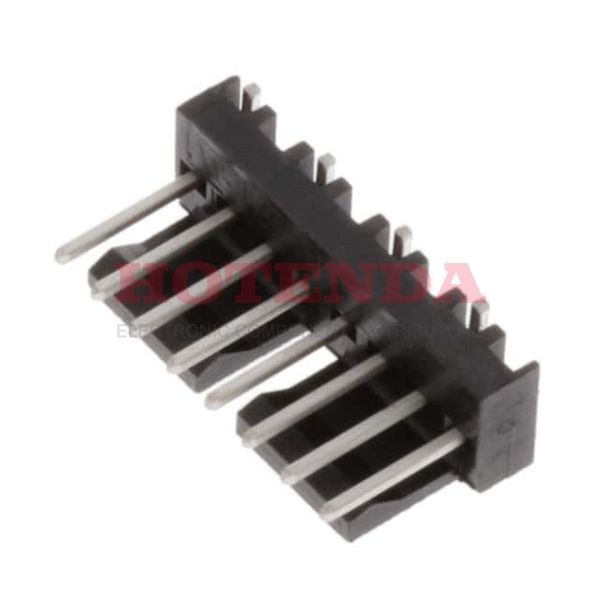

Name: 1744382-8
Brand: TE Connectivity AMP Connectors
SKU: 1744382-8
Price: 2.69000 USD
Availability: InStock

new-10%

1744382-8

Manufacturer part number:1744382-8

Manufacturer:TE Connectivity AMP Connectors

Description:1744382-8 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1744382-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Housing Material	Nylon
PCB Mounting Orientation	Right Angle
PCB Mount Alignment	Without
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Published	2014
Series	MTA-100
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	8
Number of Rows	1
Gender	Male
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
Contact Type	Male Pin
Total Number of Contacts	8
Orientation	Right Angle
Insulation Height	0.347 8.81mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	5A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Shrouding	Shrouded - 1 Wall
Number Of PCB Rows	2
Contact Length - Mating	0.295 7.49mm
PCB Contact Pattern	STAGGERED
Body Breadth	0.25 inch
Body Depth	0.347 inch
Operating Supply Voltage	250V
Rated Current (Signal)	3A
Contact Style	Straight
Polarization Key	POLARIZED HOUSING
PCB Contact Row Spacing	4.445 mm
Sealable	No
Contact Current Rating	5A
Circuit Application	Signal
Mating Retention	With
Mating Post Length	7.37mm
Preloaded	Yes
Height	8.81mm
Length	20.32mm
Width	6.35mm
Plating Thickness	6.35μm
PCB Thickness	1.6002mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1744382-8 Product Details

1744382-8 Overview

This product is packaged in a Header cartonMounting type Surface Mount is assigned to the device.It's packaged in a Tape & Reel (TR) case.There is a product in the MTA-100 Series.A number of advantages can be derived from its Pick and Place feature.There's a Surface Mount mount on the part.The operating voltage of this memory is 250V.Running in -55°C~105°C Operating Temperature.
