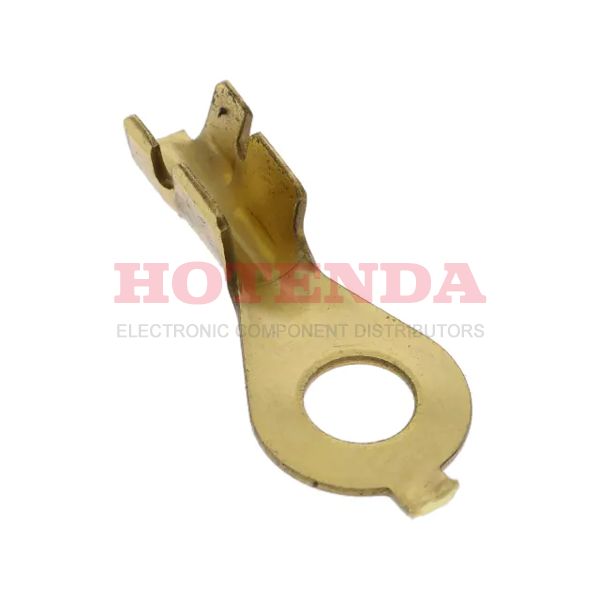

160787-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
160787-1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 4 months ago)
Factory Lead Time
17 Weeks
Contact Material
Brass
Contact Plating
Unplated
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Tape & Reel (TR)
Published
2006
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
HTS Code
8536.90.40.00
Depth
8.7mm
Wire Gauge
14-18 AWG
Wire Gauge (Max)
18 AWG
Wire Gauge (Min)
14 AWG
Wire/Cable Gauge
18 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.100 ~ 0.140 (2.54mm ~ 3.56mm)
Insulation
Non-Insulated
Terminal Type
Circular
Wire Cross Section
2.5 mm2
Insulated Wire Support
Yes
Stud Diameter
4.3 mm
Number of Holes
1
Length
19.8mm
Thickness
0.024 0.61mm
Length - Overall
0.784 19.91mm
Diameter - Inside
1.65 mm
Width - Outer Edges
0.342 8.69mm
Material Thickness
609.6μm
Tongue Thickness
610μm
Radiation Hardening
No
RoHS Status
RoHS Compliant
In-Stock:26308 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
160787-1 Product Details
Description: TE Connectivity / AMP Terminals - Ring Connectors 160787-1 are designed for use in a variety of electrical applications. These terminals feature a ring tongue design with an insulated sleeve and are made from high-quality materials for reliable performance. The terminals are suitable for use with 16-14AWG wire and have a #8-32UNC thread size.
Features: - Ring tongue design with insulated sleeve - Suitable for use with 16-14AWG wire - #8-32UNC thread size - High-quality materials for reliable performance
Applications: TE Connectivity / AMP Terminals - Ring Connectors 160787-1 are suitable for use in a variety of electrical applications, including automotive, industrial, and consumer electronics. They can be used to connect wires to terminals, switches, and other electrical components.
