160038 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
160038 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 4 days ago)
Factory Lead Time
13 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
Solistrand
Published
1999
Feature
Brazed Seam, Serrated Termination
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Color
Grey
HTS Code
8536.90.40.00
Depth
19.1mm
Contact Finish
Tin
Wire Gauge
10-12 AWG
ELV
Compliant
Wire Gauge (Max)
12 AWG
Wire Gauge (Min)
10 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
6.64 mm
Insulation
Non-Insulated
Terminal Type
Circular
Wire Cross Section
6 mm2
Stud/Tab Size
M10 Stud
Heavy Duty
No
Stud Diameter
10.3124 mm
Number of Holes
1
Stud Size
M10
Length
32.4mm
Thickness
0.039 0.99mm
Length - Overall
1.276 32.40mm
Diameter - Inside
3.277 mm
Width - Outer Edges
0.748 19.00mm
Material Thickness
990.6μm
Tongue Thickness
990μm
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:5813 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.85000
$0.85
10
$0.75100
$7.51
25
$0.70640
$17.66
50
$0.67700
$33.85
100
$0.64770
$64.77
250
$0.58880
$147.2
500
$0.52990
$264.95

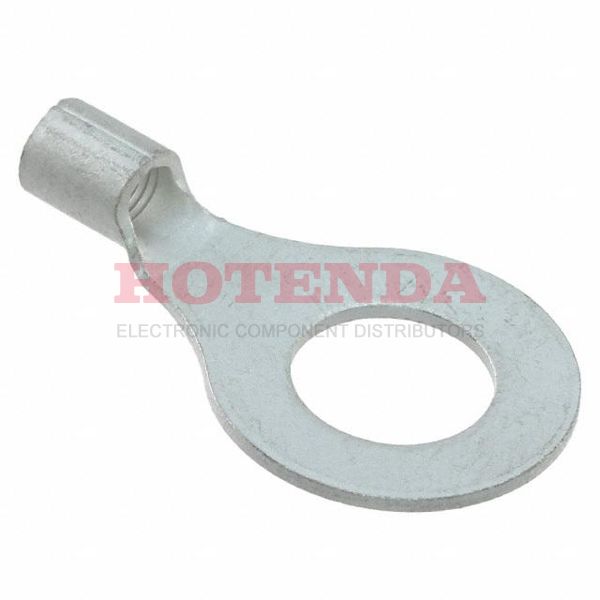

160038 Product Details
Description: The TE Connectivity / AMP Terminals 160038 Ring Connectors are a series of circular ring connectors designed for use with 10-12 AWG wire. The connectors feature a M10 thread size and are made from a durable, corrosion-resistant material.
Features: - Designed for use with 10-12 AWG wire - M10 thread size - Durable, corrosion-resistant material - Easy to install
Applications: The TE Connectivity / AMP Terminals 160038 Ring Connectors are ideal for a variety of applications, including automotive, industrial, and marine wiring. They can be used to connect wires in a variety of electrical systems, including lighting, power, and control systems.
