Name: 1586044-8
Brand: TE Connectivity AMP Connectors
SKU: 1586044-8
Price: 0.78000 USD
Availability: InStock

new-10%

1586044-8

Manufacturer part number:1586044-8

Manufacturer:TE Connectivity AMP Connectors

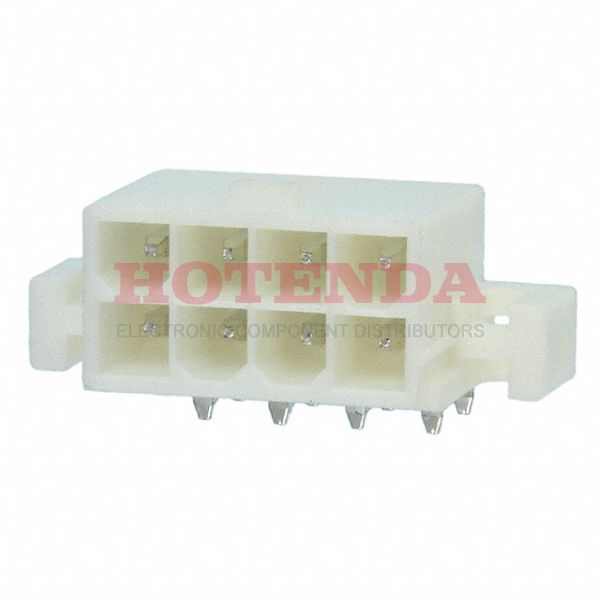

Description:Conn Power PIN 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Tray

Case Package:SOT-23

Datasheet:1586044-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Brass Alloy
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Material	Brass
Housing Material	Nylon
PCB Mounting Orientation	Right Angle
Operating Temperature	-40°C~105°C
Packaging	Tray
Published	2008
Series	VAL-U-LOK
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Applications	General Purpose, Industrial, Lighting
Number of Rows	2
Voltage - Rated	600VAC
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Right Angle
Depth	19.4mm
Insulation Height	0.386 9.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	9A
Pitch - Mating	0.165 4.20mm
Insulation Color	Natural
Number of Conductors	ONE
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.165 (4.20mm)
Contact Length - Post	0.142 3.60mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Number of Contacts	8
PCB Contact Pattern	RECTANGULAR
Housing Color	Natural, White
Operating Supply Voltage	600V
Rated Current (Signal)	9A
ELV	Compliant
Max Voltage Rating (AC)	600V
Polarization Key	POLARIZED HOUSING
Number of Ports	1
Sealable	No
Contact Current Rating	9A
Circuit Application	Power
Insulation Diameter	3.0988 mm
Number of Signal Positions	0
Contact Retention	Without
Height	9.8044mm
Length	18.00098mm
Width	12.8mm
Plating Thickness	80μm
Contact Finish Thickness - Mating	80.0μin 2.03μm
Contact Finish Thickness - Post	80.0μin 2.03μm
PCB Thickness	63μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

About 1586044-8

The 1586044-8 from TE Connectivity AMP Connectors is a high-performance microcontroller designed for a wide range of embedded applications. This component features Conn Power PIN 8 POS 4.2mm Solder RA Thru-Hole 8 Terminal 1 Port Tray.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the 1586044-8, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
