Name: 1408349-1
Brand: TE Connectivity AMP Connectors
SKU: 1408349-1
Price: 20.01000 USD
Availability: InStock

new

1408349-1

Manufacturer part number:1408349-1

Manufacturer:TE Connectivity AMP Connectors

Description:Jack, Female Socket Snap-On 50Ohm Bulk QMA Solder 1 Port Polytetrafluoroethylene (PTFE) -40°C~80°C

Case Package:SOT-23

Datasheet:1408349-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	13 Weeks
Contact Material	Copper
Contact Plating	Gold
Mount	Panel
Mounting Type	Panel Mount
Package / Case	402
Mounting Feature	Bulkhead - Front Side Nut
Insulation Material	Polytetrafluoroethylene
Dielectric Material	Polytetrafluoroethylene (PTFE)
Body Material	Brass
Center Contact Plating	Gold
Center Contact Material	Beryllium Copper
Operating Temperature	-40°C~80°C
Packaging	Bulk
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Jack, Female Socket
Number of Positions	1
Max Operating Temperature	80°C
Min Operating Temperature	-40°C
Gender	Female
Voltage - Rated	335V
Fastening Type	Snap-On
Orientation	Straight
Depth	9.5mm
Frequency	6GHz
Number of Contacts	1
Housing Color	Gold
Polarity	Normal, Standard
Insulation Resistance	5GOhm
ELV	Compliant
Plating	Gold
Impedance	50Ohm
Connector Style	QMA
Number of Ports	1
Body Plating	Gold
Sealable	No
Frequency (Max)	6GHz
Mating Cycles	100
Contact Termination	Solder

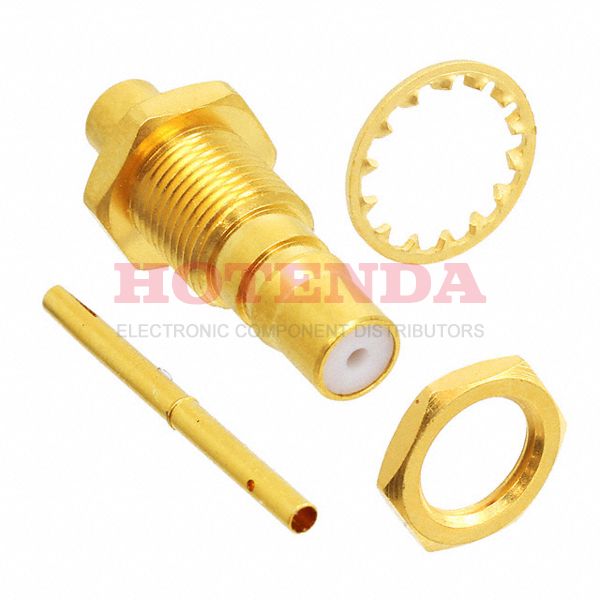

Includes	4 pcs - 1 Connector, 1 Contact, 1 Lockwasher, 1 Nut
Insertion Loss	0.25dB
Body Finish	Gold
Cable Group	RG-402 (.141 Semi Rigid)
Shield Termination	Solder
Length	23.0632mm
Radiation Hardening	No
RoHS Status	RoHS Compliant

1408349-1 Product Details

1408349-1 Overview

A Jack, Female Socket package is included with it.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.Use it below 80°C.A minimum temperature of -40°C must be maintained for the operation of this device.402 refers to a package enclosing a device.With 1 ports, it is capable of managing a wide range of tasks.By Panel, the part is mounted.Operating temperature is set to -40°C~80°C.An effective performance can be achieved at a frequency of 6GHz.
