Name: 104069-1
Brand: TE Connectivity AMP Connectors
SKU: 104069-1
Price: 5.05000 USD
Availability: InStock

new-10%

104069-1

Manufacturer part number:104069-1

Manufacturer:TE Connectivity AMP Connectors

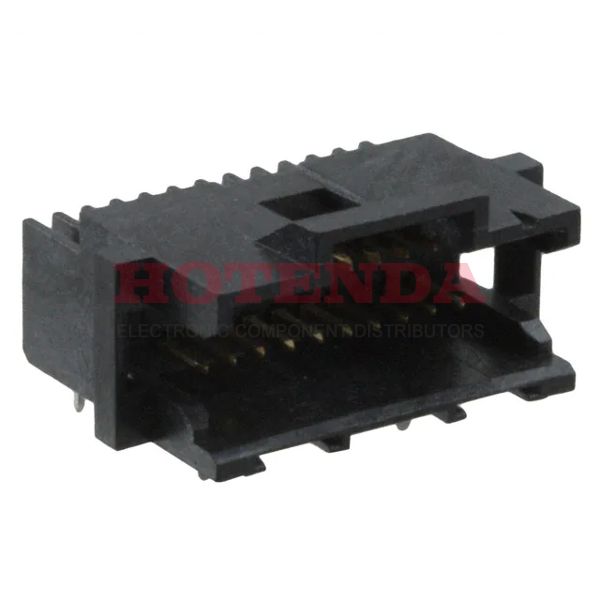

Description:104069-1 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:104069-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Circular
Insulation Material	Thermoplastic
PCB Mounting Orientation	Right Angle
Operating Temperature	-65°C~105°C
Packaging	Tube
Published	2005
Series	AMPMODU System 50
JESD-609 Code	e0
Feature	Board Guide
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	20
Applications	Automotive, General Purpose, Medical, Telecommunications
Number of Rows	2
Voltage - Rated	30VAC
HTS Code	8536.69.40.40
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Right Angle
Depth	13.72mm
Insulation Height	0.290 7.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Number of Conductors	ONE
Voltage - Rated AC	30V
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.100 2.54mm
Shrouding	Shrouded - 2 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin-Lead
Contact Length - Mating	0.125 3.18mm
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Breadth	0.35 inch
UL Flammability Code	94V-0
Housing Color	Black
Lead Length	2.54mm
Operating Supply Voltage	30V
Contact Resistance	15mOhm
Insulation Resistance	1000000000Ohm
Mating Contact Pitch	0.05 inch
Max Voltage Rating (AC)	30V
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	500VAC V
Insertion Force-Max	1.39 N
Contact Current Rating	1A
Mating Post Length	2.54mm
Keyed	No
Height	8.89mm
Length	19.05mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	150.0μin 3.81μm
PCB Thickness	1.397mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

104069-1 Product Details

104069-1 Overview

The packaging is Header.This device's mounting type is Through Hole, Right Angle.We package the product with a Tube case.Product number AMPMODU System 50 belongs to the AMPMODU System 50 Series.A possible application for the device is Automotive, General Purpose, Medical, Telecommunications.A number of advantages are provided by its Board Guide feature.Through Hole is the mounting point for the part.Its operating supply voltage is 30V.Devices operate at -65°C~105°C operating temperatures.
