Name: 1-440054-3
Brand: TE Connectivity AMP Connectors
SKU: 1-440054-3
Price: 0.98000 USD
Availability: InStock

new-10%

1-440054-3

Manufacturer part number:1-440054-3

Manufacturer:TE Connectivity AMP Connectors

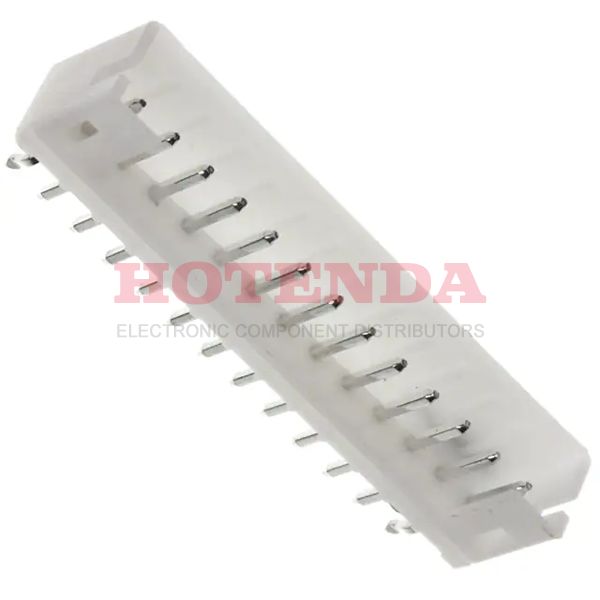

Description:High Performance Interconnect (HPI) Series 1-Row Header Press-Fit, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 13-Position Board to Cable/Wire 0.238 6.05mm Height

Case Package:SOT-23

Datasheet:1-440054-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	13 Weeks
Contact Material	Brass
Contact Plating	Brass, Tin
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6
Housing Material	Nylon
PCB Mounting Orientation	Vertical
PCB Mount Retention	With
Operating Temperature	-25°C~85°C
Packaging	Bulk
Series	High Performance Interconnect (HPI)
Published	2006
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit, Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	13
Applications	Automotive, General Purpose, Industrial, Medical
Number of Rows	1
HTS Code	8536.69.40.40
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Depth	4.7mm
Insulation Height	0.238 6.05mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.079 2.00mm
Insulation Color	Natural
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.134 3.40mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	1
Contact Length - Mating	0.132 3.35mm
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
UL Flammability Code	94V-0
Lead Length	3.4036mm
Operating Supply Voltage	250V
Rated Current (Signal)	3A
Overall Contact Length	0.335 8.51mm
Contact Style	Straight
Contact Resistance	20mOhm
Mating Contact Pitch	0.079 inch
ELV	Compliant
Polarization Key	POLARIZED HOUSING
Wire/Cable Type	Discrete
Durability	30 Cycles
Wire/Cable Gauge	24 AWG
Insertion Force-Max	48.0384 N
Sealable	No
Contact Current Rating	3A
Mating Retention	Without
Insulation Diameter	900 μm
Mating Post Length	3.3274mm
Height	6.0452mm
Length	28.00096mm
Width	4.7mm
Contact Finish Thickness - Mating	80.0μin 2.03μm
Contact Finish Thickness - Post	80.0μin 2.03μm
Length - Tail	3.4mm
PCB Thickness	1.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1-440054-3 Product Details

1-440054-3 Overview

Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the High Performance Interconnect (HPI) Series.A possible application for the device is Automotive, General Purpose, Industrial, Medical.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -25°C~85°C Operating Temperature.
