Name: 1-1586042-4
Brand: TE Connectivity AMP Connectors
SKU: 1-1586042-4
Price: 1.73000 USD
Availability: InStock

new-10%

1-1586042-4

Manufacturer part number:1-1586042-4

Manufacturer:TE Connectivity AMP Connectors

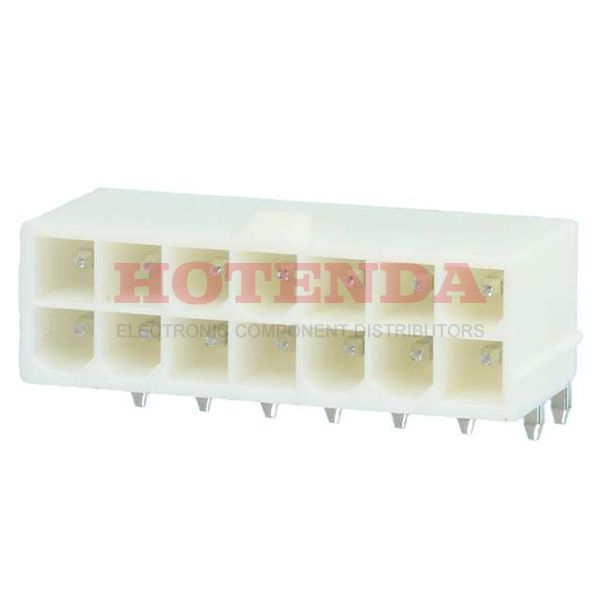

Description:Pin & Socket Connectors 14P VAL-U-LOK R/A HDR V0

Case Package:SOT-23

Datasheet:1-1586042-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Brass Alloy
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Housing Material	Nylon
PCB Mounting Orientation	Right Angle
Operating Temperature	-40°C~105°C
Packaging	Tray
Published	2008
Series	VAL-U-LOK
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	14
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Applications	General Purpose, Industrial, Lighting
Number of Rows	2
Voltage - Rated	600VAC
HTS Code	8536.69.40.40
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Right Angle
Insulation Height	0.402 10.20mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	9A
Pitch - Mating	0.165 4.20mm
Insulation Color	Natural
Number of Conductors	ONE
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.165 (4.20mm)
Contact Length - Post	0.142 3.60mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.449 inch
UL Flammability Code	94V-0
Housing Color	Natural, White
Body Depth	0.773 inch
Operating Supply Voltage	600V
Rated Current (Signal)	9A
ELV	Compliant
Max Voltage Rating (AC)	600V
Polarization Key	POLARIZED HOUSING
Number of Ports	1
Durability	50 Cycles
Sealable	No
Contact Current Rating	9A
Circuit Application	Power
Insulation Diameter	3.0988 mm
Contact Retention	Without
Height	9.8044mm
Length	30.6mm
Width	13mm
Plating Thickness	78.73μm
Contact Finish Thickness - Mating	80.0μin 2.03μm
Contact Finish Thickness - Post	80.0μin 2.03μm
PCB Thickness	63μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
