1-1337541-0

  • 1-1337541-0
  • 1-1337541-0

1-1337541-0

1-1337541-0

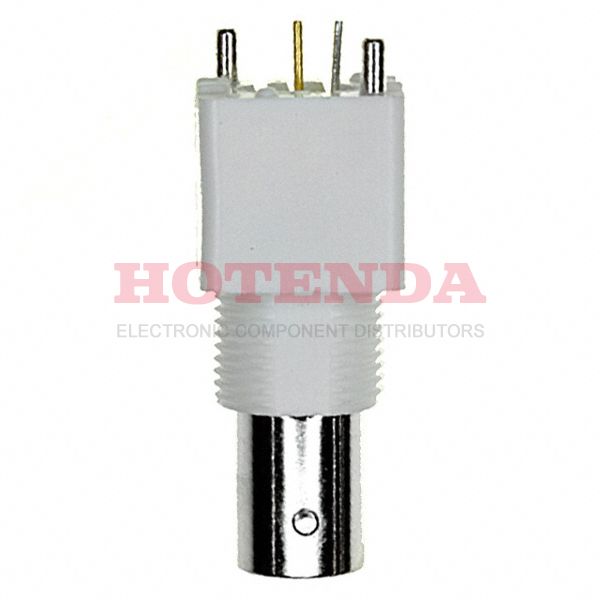

TE Connectivity AMP Connectors

Jack, Female Socket Bayonet Lock 50Ohm Bulk BNC Solder 1 Port Polyethylene (PE) -55°C~85°C

SOT-23

1-1337541-0 Datasheet

non-compliant

In-Stock: 3011 items
Specifications
Name Value
Type Parameter
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 11 Weeks
Mount Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polyethylene
Dielectric Material Polyethylene (PE)
Housing Material Polyester
Body Material Zinc Alloy
PCB Mounting Orientation Vertical
Center Contact Plating Gold
Center Contact Material Brass
Operating Temperature -55°C~85°C
Packaging Bulk
Series ZDC, Greenpar
Published 2005
Feature Board Guide, Isolated
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Jack, Female Socket
Number of Positions 1
Color White
Gender Female
Fastening Type Bayonet Lock
Voltage - Rated DC 500V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Total Number of Contacts 1
Depth 15.8mm
Frequency 4GHz
Reliability COMMERCIAL
Housing Color Silver, White
Polarity Normal
Contact Style COAX
Contact Resistance 1.5mOhm
Insulation Resistance 5GOhm
ELV Compliant
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Durability 50 Cycles
Sealable No
Mating Cycles 500
Contact Termination Solder
Body Finish Nickel
VSWR 1.3
Length 14.76mm
Length - Tail 5.8mm
PCB Thickness 3.2004mm
REACH SVHC Unknown
RoHS Status RoHS Compliant
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $2.47000 $2.47
10 $2.24000 $22.4
25 $2.10240 $52.56
50 $2.01100 $100.55
100 $1.91960 $191.96
250 $1.73680 $434.2
500 $1.59968 $799.84
1-1337541-0 Product Details

1-1337541-0 Overview


The packaging contains Jack, Female Socket.This device is mounted in the Panel Mount, Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the ZDC, Greenpar Series.The device has 1 ports that can be used to manage a variety of tasks.There are a number of advantages to its Board Guide, Isolated feature.Part Panel, Through Hole is mounted to the part.As a result, the device runs at -55°C~85°C Operating Temperature.This device is extremely efficient when operated at a frequency of 4GHz.

1-1337541-0 Features


ZDC, Greenpar series


1-1337541-0 Applications


There are a lot of TE Connectivity AMP Connectors
1-1337541-0 Coaxial Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
