8-51863-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity / AMP stock available on our website
SOT-23
8-51863-1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Insulation Material
Nylon
Packaging
Bulk
Pbfree Code
yes
Termination
Crimp
ECCN Code
EAR99
Color
Green, Red
HTS Code
8536.90.40.00
Voltage - Rated AC
300V
ELV
Compliant
Wire/Cable Gauge
22 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
2.79 mm
Insulation
Insulated
Wire/Cable Diameter
3.175 mm
Wire Cross Section
0.38 mm2
Insulated Wire Support
Yes
Heavy Duty
No
Terminal Gender
FEMALE
Stud Diameter
3.68 mm
Number of Holes
1
Stud Size
M3.5
Length
19.86mm
Thickness
787.4μm
Tongue Thickness
790μm
REACH SVHC
No SVHC
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:2820 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
8-51863-1 Product Details

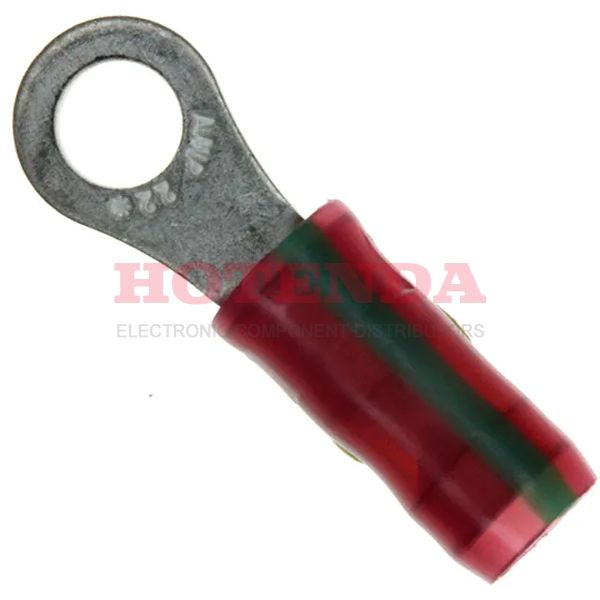

Description: The TE Connectivity / AMP Terminals 8-51863-1 Ring Connectors are a reliable and durable solution for electrical connections. These connectors feature a circular design with a #6 crimp size and 22 AWG wire size.
Applications: The TE Connectivity / AMP Terminals 8-51863-1 Ring Connectors are suitable for a variety of applications, including automotive, industrial, and consumer electronics. They are ideal for use in applications where a reliable and durable connection is required.
